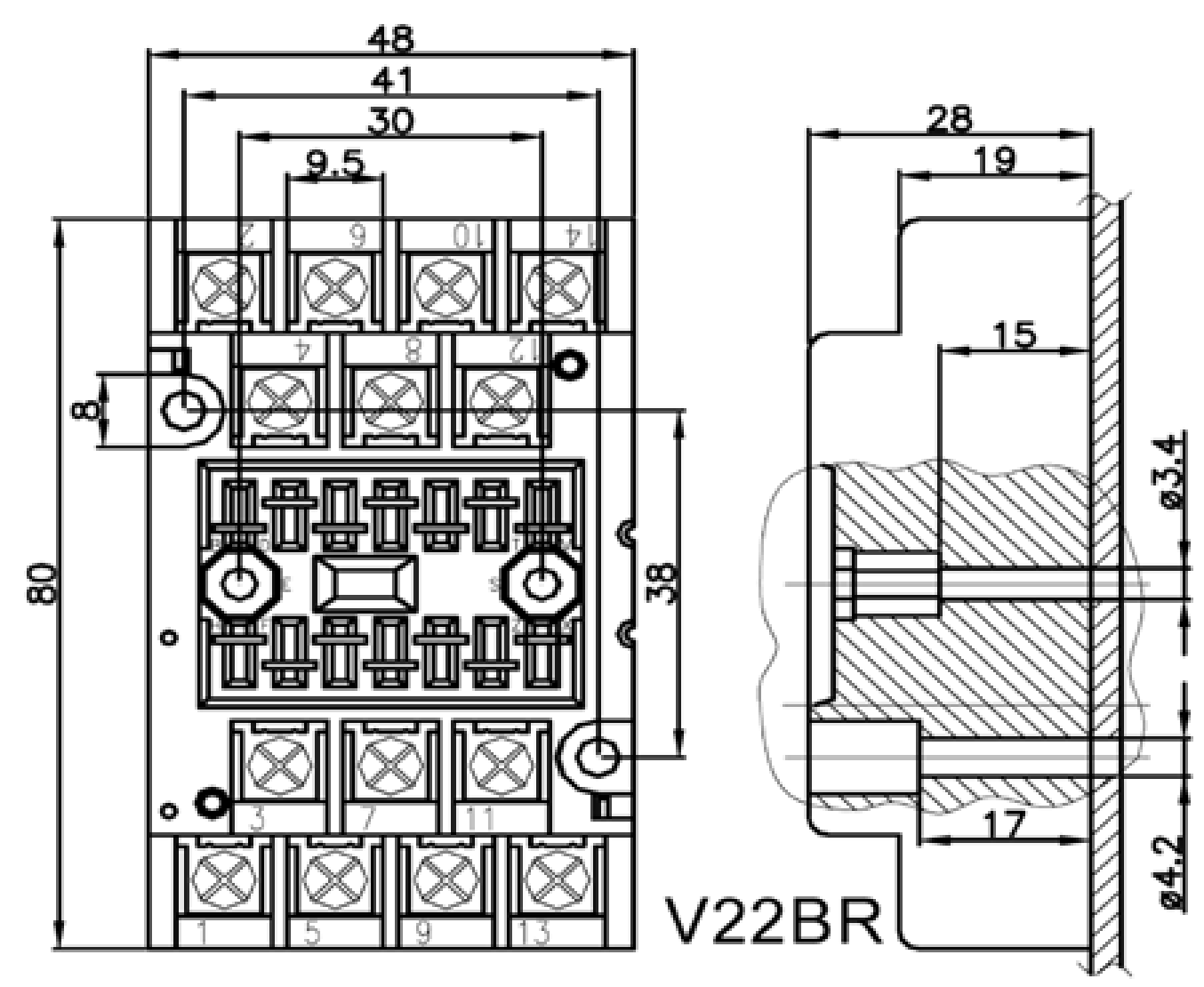

The V22BR is a surface / wall mount D-Relay Socket with extra space for ring tabs. The V22BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. The V22BR is a surface / wall mount relay socket with extra space for ring tabs.
