Compact hydraulic magnetic circuit breaker for railway applications, to protect electronic equipment and components against unintended high currents.

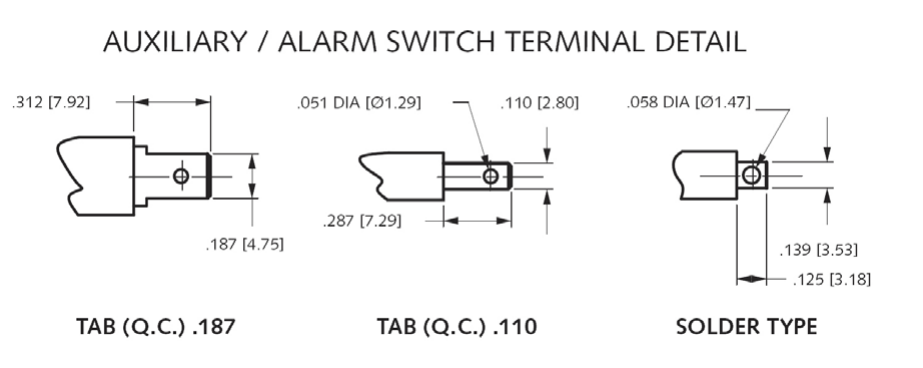

Optional with integrated auxiliary contacts to monitor the circuit.
The trip point is always at maximum allowable current, independent of ambient temperature. Mid-trip handle to indicate clearly a breaker operation caused by electrical fault. With unique arc chute design which results in high interrupting capacities. Up to 6 poles which all break its electronic circuits when 1 breaker trips, for optimal protection of the system.
Wide range of currents and options available.
• Precise, temperature independent operation
• Panel mount
• Integrated auxiliary contacts (optional)
• Up to 6 poles configuration
• High interrupting capacities due to unique arc chute method
• Mid-trip handle for electrical trip indication (optional)
• Immediate resetting possible
• Wide current range: 0.02 - 100 A
• Wide choice of time delays
• Maximum voltage 137.5 VDC / 484 VAC
• High contact pressure & longer contact life due to wiping
self-cleaning contacts
