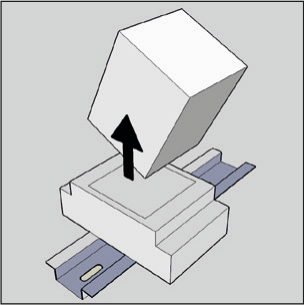

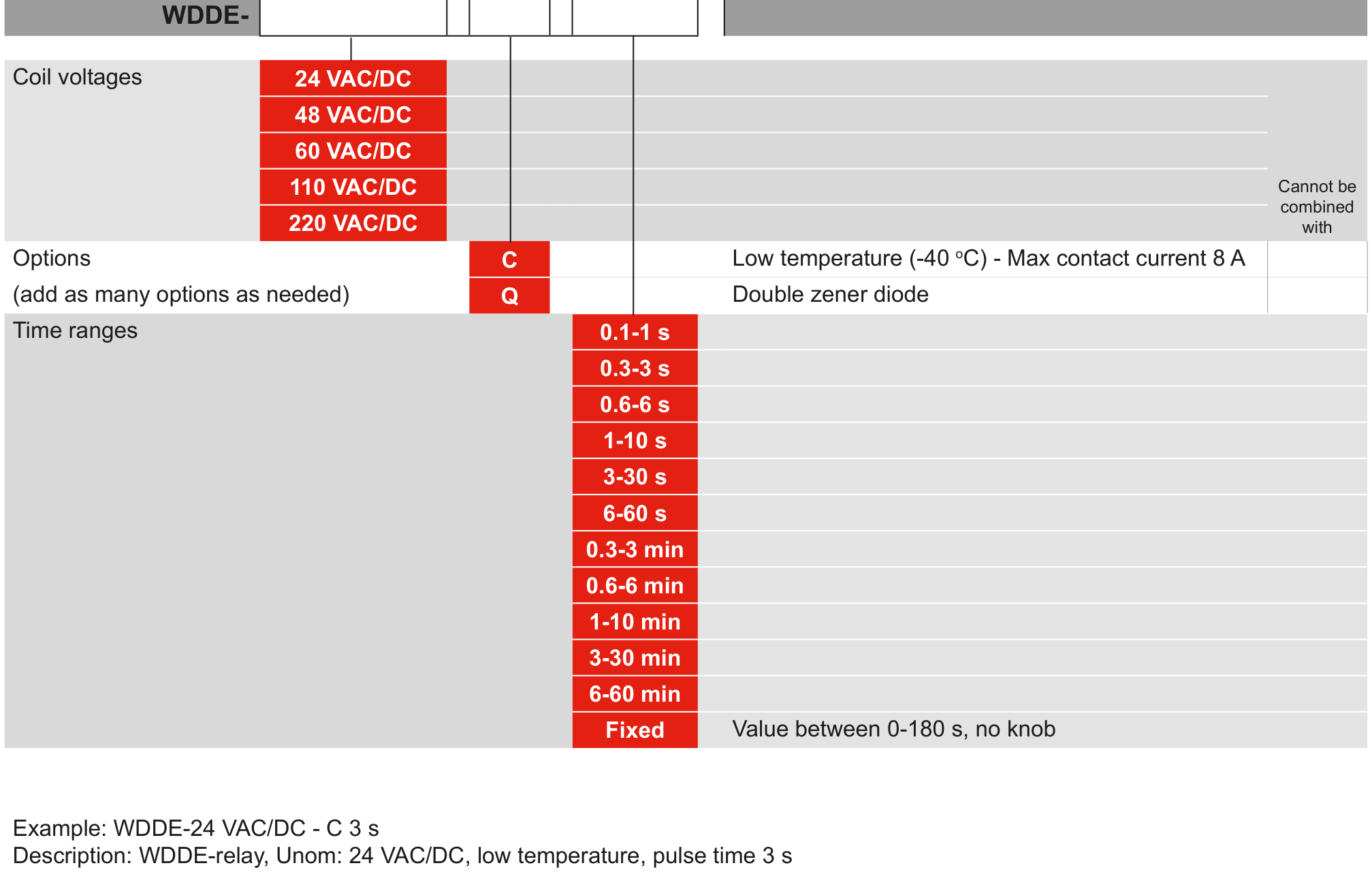

Plug-in industrial electronic timer relay with two instantaneous change-over contacts and two one-shot change-over contacts. When activated, the one-shot contacts are energized with one pulse; the pulse time is adjustable via a lockable knob or fixed. Two LEDs indicate power and coil energization. Its construction and materials make the WDDE relay suitable for low and high temperatures, shock, vibration and humid environments. No external retaining clip is needed, as the integrated snap-lock holds the relay in any mounting direction. Its compact design, many options and wide range of sockets make it an easy and flexible solution.
The V32 is a D-Relay Socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay.
