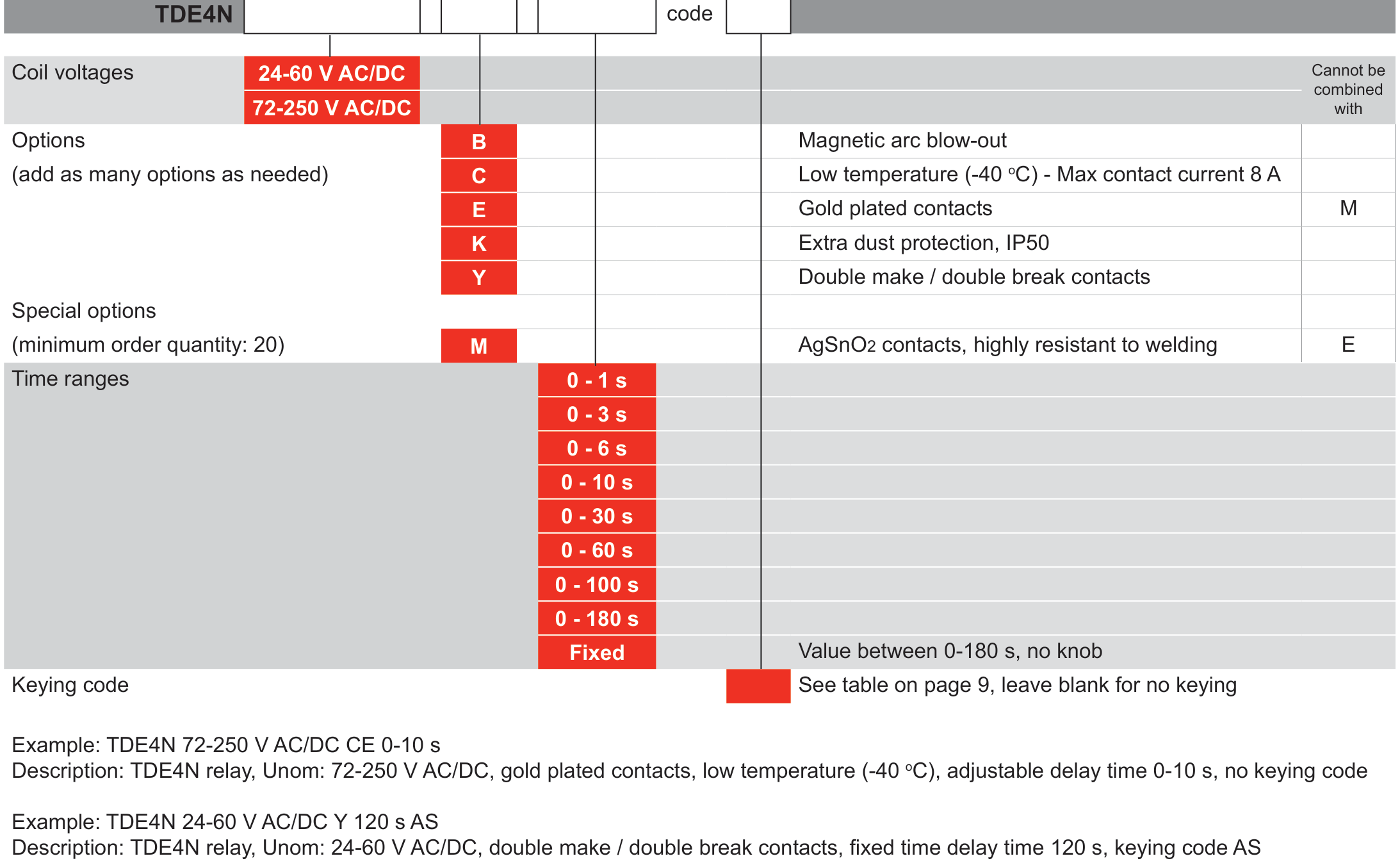

Plug-in electronic industrial timer relay with four change-over contacts. When de-energized, there is a delay on drop-out without any auxiliary power supply. The delay time is adjustable with a lockable knob, or the relay can be supplied with a fixed time delay. An LED indicates the presence of energizing voltage. Standard equipped with back-EMF suppression and optionally with magnetic arc blow-out for high breaking capacity and long contact life. Its construction and materials make the TDE4N relay suitable for temperature extremes, shock, vibration and humidity. The integrated snap-lock holds the relay in any mounting direction.

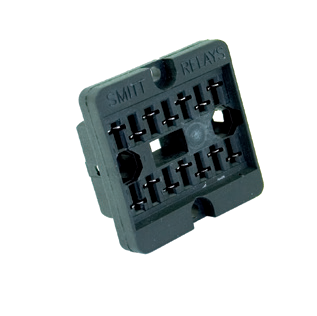

The V32 is a D-Relay Socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay.
