Stadler, Valencia

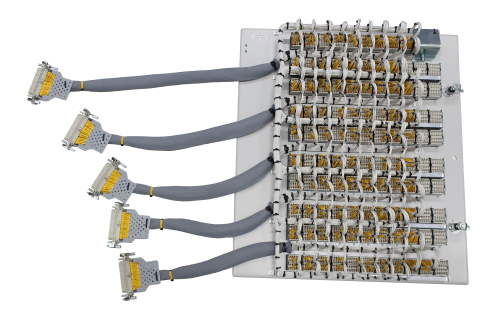

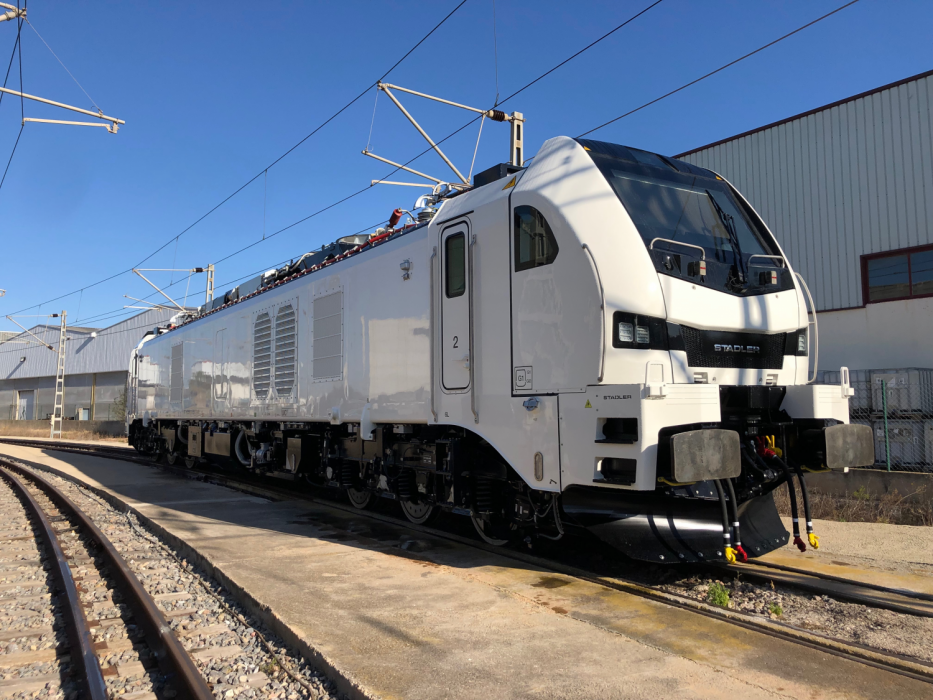

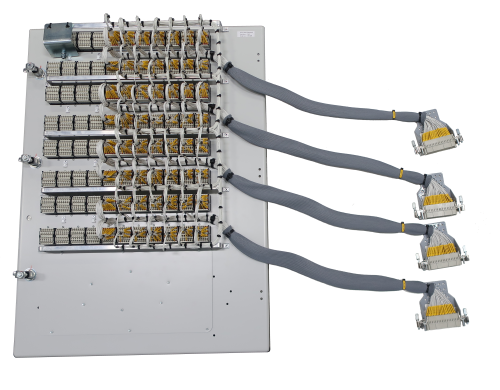

Stadler Valencia—EUR-DUAL Locomotive. Wabtec Netherlands/Mors Smitt designed and produced a high density relay panel for Stadler. This electrical relay panel has the advantage that is saves space and weight and it makes the maintenance of the different components and functions much easier.

img-0056-eurodual-elp(1).png stadler-panel-1-low-res.png stadler-panel-2-low-res.png

Why we make the difference by panel designs?

Our design department has extensive experience with railway applications
Key-words for our designs; Design-For-Assembly, Plug-and-Play and Industrialisation


Advantages of our design method!

  • Easy to buy components; we use as less as possible different parts with low lead times
  • Easy to produce anywhere in the world, we use simple connection methods
  • Easy to check the panel; we plug-in the connectors to a functional bench tester
  • Easy to install the panel in the vehicle; we use connectors and hinges
  • Easy to do the commissioning of the vehicle; all connection points are easily accessible
  • Easy to organize modifications; the panel is removable, changes can be done in the workshop
  • Easy to change a type of relay; all our relays are pin-compatible, also time delay relays
  • Ease to ask us for an offer for your application; mostly we can organize this within 2 weeks
