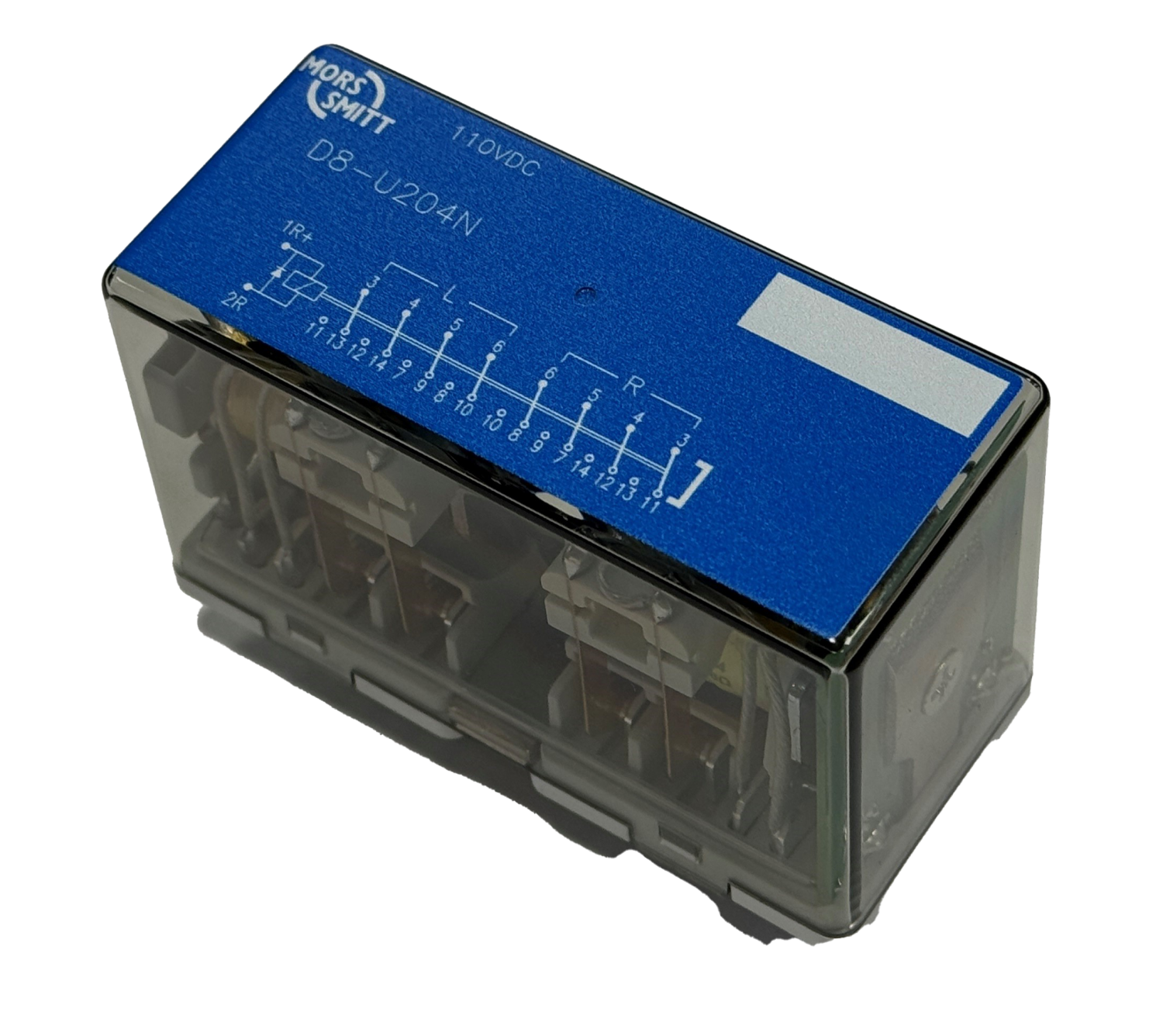

D8-U200N relay - Plug-in, 8 pole

Description

Plug-in railway relay with eight change-over contacts. Standard equipped with a back EMF suppression diode and magnetic arc blow-out for high breaking capacity and long contact life.

The construction of the relay and choice of materials makes the D8-U200N relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets make the D8-U200N relay an easy and flexible solution to use.

Application

These relays are designed for demanding rolling stock applications. The
D8-U200N is used in applications where eight contacts are used in one relay.

Features

• Compact plug-in design
• Instantaneous, 8 C/O contacts
• Back EMF suppression diode
• Magnetic arc blow-out
• Flat, square and silver plated relay pins for excellent socket connection
• Wide range sockets
• 2 integrated snap locks
• Transparent cover
• High DC breaking capacity
• Optional positive mechanical keying relay to socket
• Flexibility by many options
• Benefits
• Proven reliable
• Long term availability
• Easy to maintain
• Low life cycle cost
• No maintenance

Railway compliancy

• EN 50155 Electronic equipment used on rolling stock for railway applications
• IEC 60571 Electronic equipment used on railway vehicles
• IEC 60077 Electrical equipment for rolling stock in railway applications
• IEC 60947 Low voltage switch gear and control gear
• IEC 61373 Rolling stock equipment - Shock and vibration test
• EN 50121 Electromagnetic compatibility for railway applications
• NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
• IEC 60529 European standard describes the protection class (IP-code)
• NF F 62-002 On-off contact relays and fixed connections
