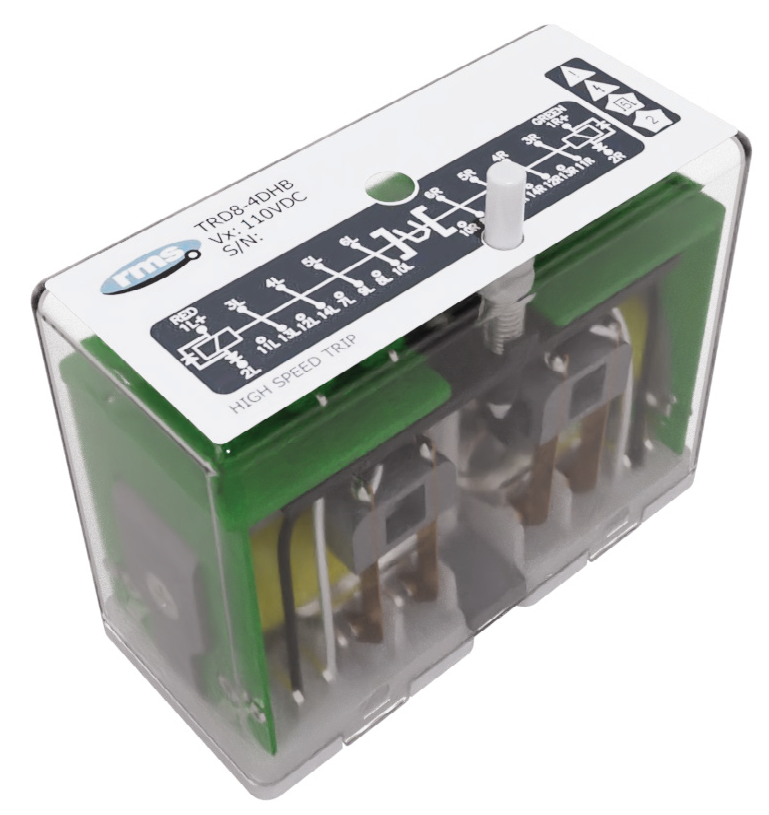

TRD8 Fast tripping plug-in industrial relay with 8 C/O latching contacts.

Features

• Latching (bistable) relay
• Fast tripping: < 10 ms
• Reset inhibitor to avoid simultaneous energization of Operate and Reset Coil
• Compact plug-in design 8 C/O contacts
• Back EMF suppression diode on operate and reset coils
• Contact position indicator
• Less than 0.2W power consumption after switching
• Magnetic arc blow-out for high breaking capacity and long contact life
• Mechanical and electrical reset
• Panel, rack, surface or rail mounting options
• High DC breaking capacity
• Optional high burden operation to comply with capacitor discharge test requirements

Description

The TRD8 relay is a plug-in fast trip bistable tripping relay that features 8 changeover (C/O) contacts. The contacts of this relay remain in the last powered position, and the position is clearly shown to the user via a position indicator.

The TRD8 relay has a trip time less than 10 ms. Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life.

Including mechanical reset button.
Input voltage must be a rising edge with.

• minimum slew rate: 1 V/ms
• minimum time: 10 ms
