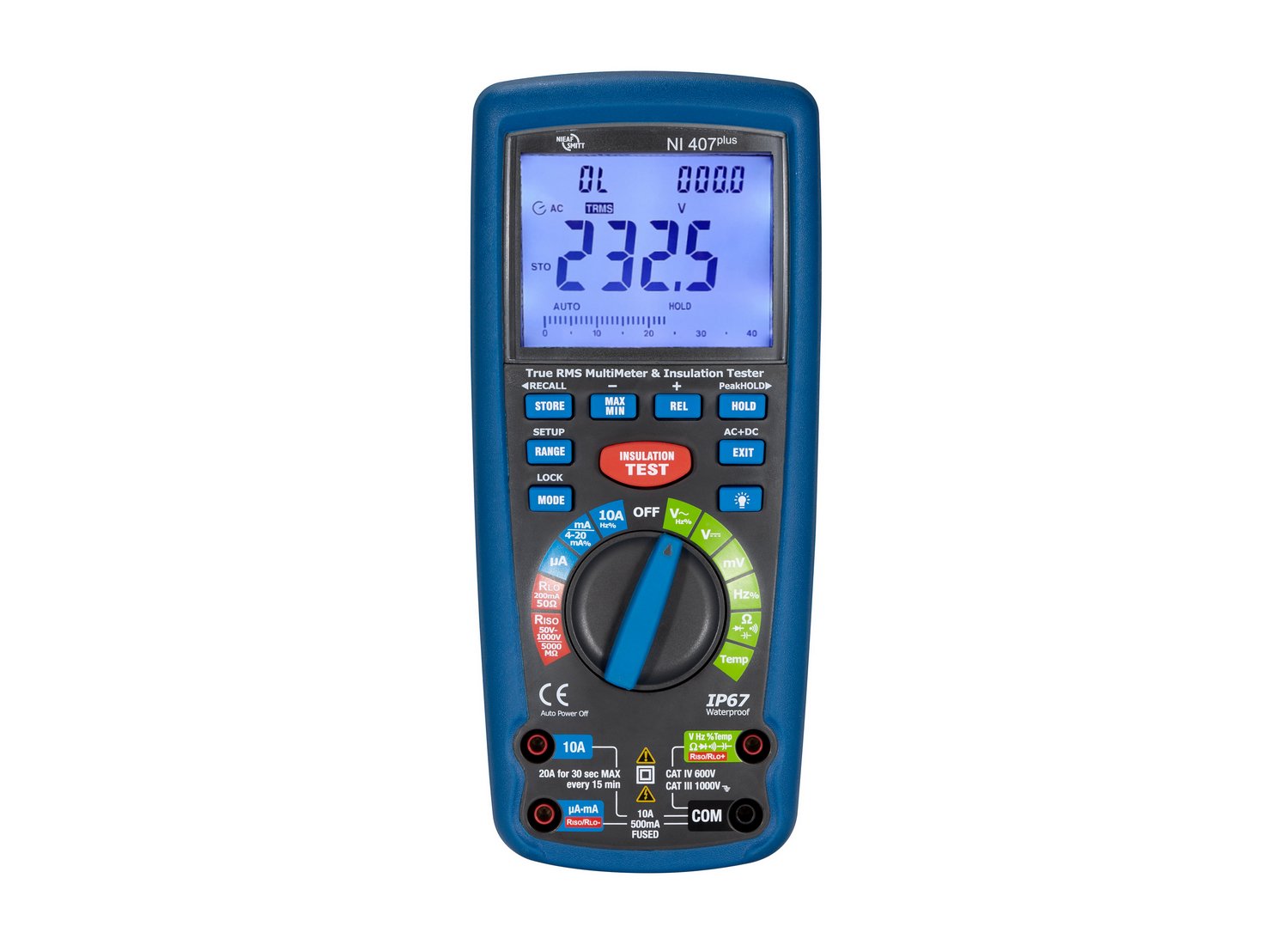

NI 407 plus, multimeter with insulation measurement
626005059Summary
Waterproof CAT IV multimeter with insulation measurement
The sturdy and waterproof (IP67) NI 407PLUS is a True RMS multimeter with built-in insulation resistance and earth bound tester. Allows the insulation resistance to be measured with 5 different test voltages for measuring up to 5 GΩ. The meter can measure the earth bound with 200 mA according the applicable EN 61557-4 standard
The NI 405PLUS includes useful extras such as duty cycle measurements andmilliamp readings for analogue 4-20 mA current loops in industrial process monitoring.
The temperature measurement, a clear display with backlight and memory,make this meter perfectly useful for installation engineers. The meter makes iteasy to perform required safety checks.
Features
- True RMS
- Insulation resistance with 50/100 /250/500/1000 V
- (Earth) Continuity (200mA)
- Automatic AC/DC detection
- Current measurement up to 20 A (AC/DC)
- Resistance
- Frequency
- Capacitance
- Diode / continuity test
- IP 67 (waterproof)
- Peak hold
- Min-max hold
- Auto power off
- Memory
- Large LCD with clear backlight
Specifications
| Functions | Range | Resolution | Accuracy |
| Voltage |
1000 VAC 1000 VDC |
0.1 V 0.1 V |
+ 1.0 % + 30d + 0.06 % + 4d |
| Current | 10 AAC 10 ADC |
0.001 A 0.001 A |
+ 1.5 % + 30d + 1.0 % + 3d |
| Resistance | 50 MΩ | 0.0001 MΩ | + 0.3 % + 4d |
| Resistance (200mA) | 500 Ω | 0.01 Ω | + 1.0 % + 20d |
| Frequency | 50 MHz | 0.01 MHz | + 0.1 % + 1d |
| Capacity | 50 mF | 0.001 mF | + 3.5 % + 10d |
| Duty cycle | 0.1...99.9 % | 0.01 % | + 1.2 % + 2d |
| Temperature | -50 °C...+1200 °C | °C | + 1.0 % + 2.5 °C |
| 4-20 mA % | -25...125 % | 0.01 % | + 50d |
| Insulation | 0.1...5000 MΩ | 0.001 MΩ | + 2.0 % + 10d |
| General | |||
| Display resolution | 50.000d | ||
| Protection class | IP 67 | ||
| Overvoltage category | CAT III 1000 V / CAT IV 600 V | ||
| Standards | EN 61010-1, EN 61557-6, EN 61557-4 | ||
| Supply | 6x 1.5 V AAA batteries | ||
| Dimensions | 220 x 96.5 x 60.5 mm | ||
| Weight | 631 g | ||

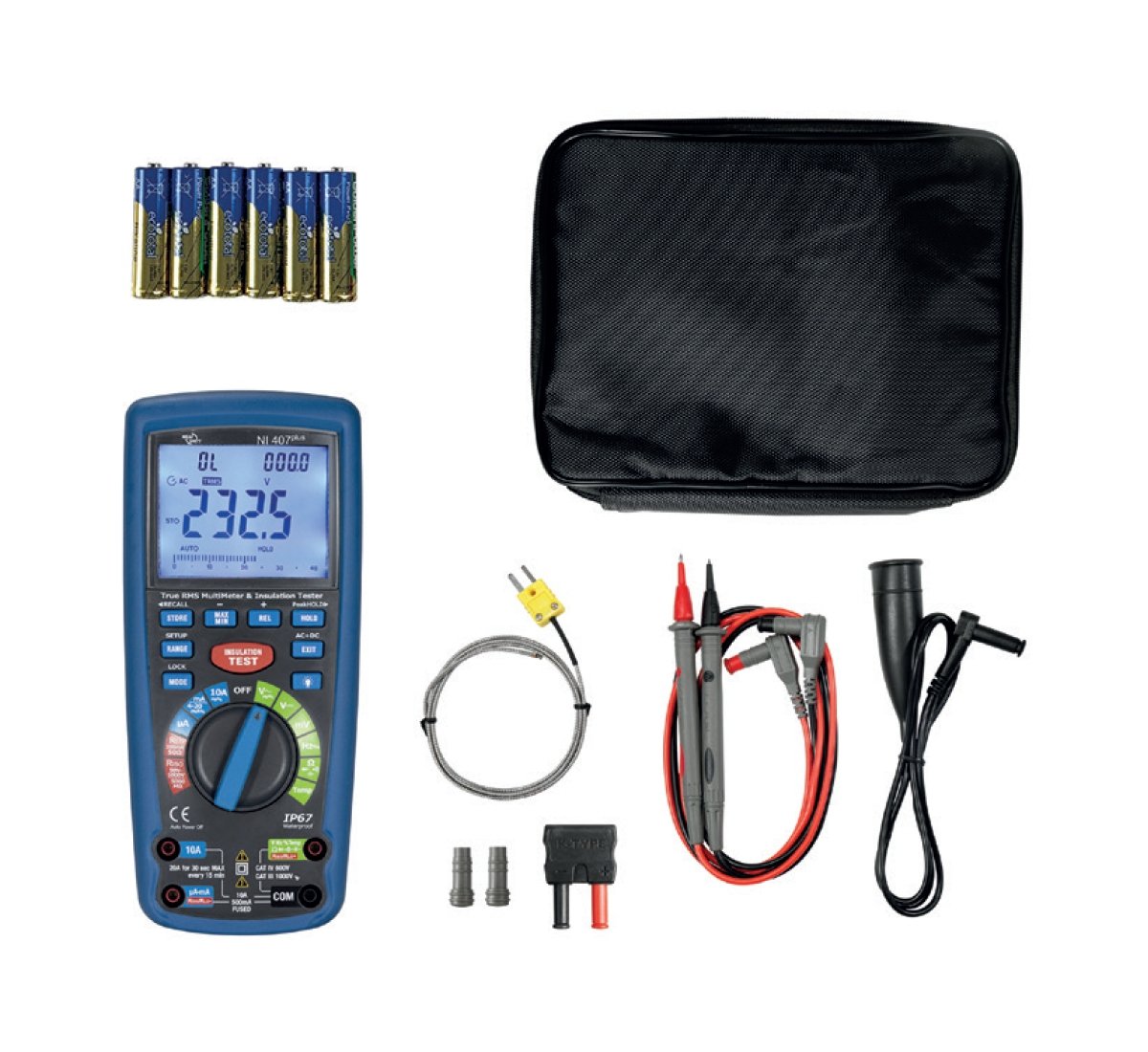

| Including | Test lead with alligator clamp, heavy duty test leads, 2 blind plugs, type K thermo couple, batteries, manual |
||
