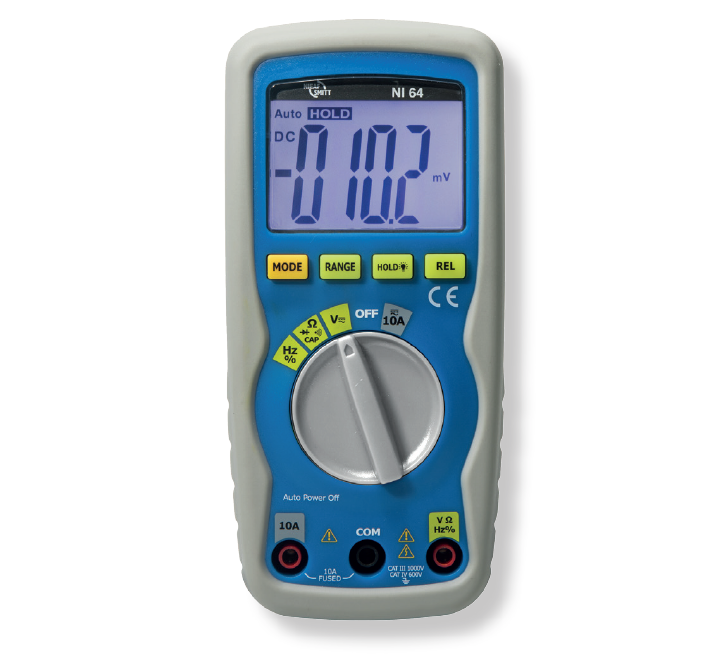

NI 64 Compact Digital Multimeter

Compact digital multimeter

The NI 64 digital multimeter is a user friendly, compact multimeter with backlight. The multimeter is easy to use by the automatic range selection. The NI 64 is able to measure AC/DC voltage, current up to 10 AAC/DC, resistance, capacity, continuity and has a diode test.

Features

• AC/DC voltage up to 600 V
• AC/DC current up to 10 A
• Resistance, capacity and frequency measurement
• Continuity - /diode test
• Duty cycle
• LCD with backlight

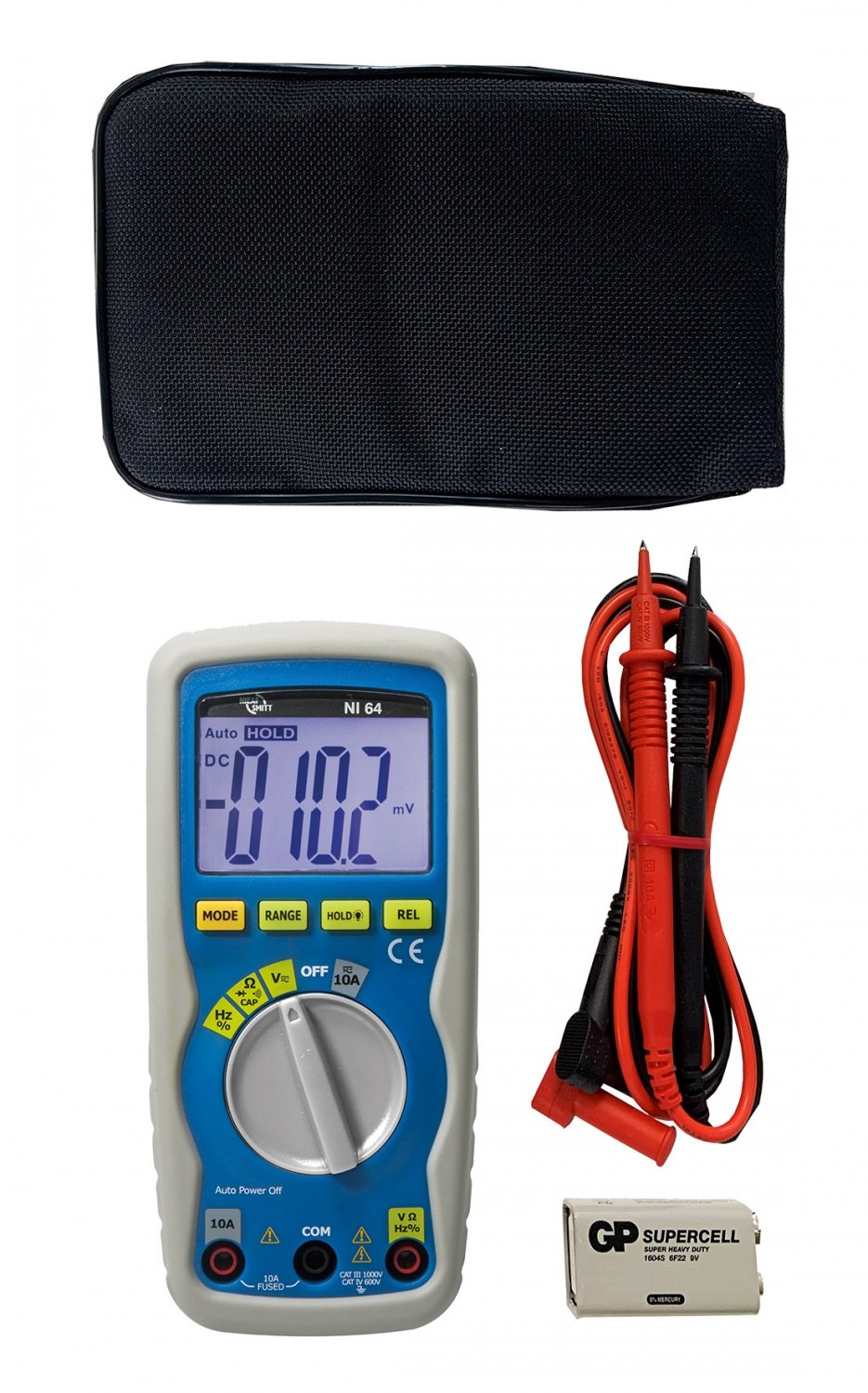

Including

• User manual
• Test leads
• Bag
• Battery

Specifications

Function	Maximum range	Accuracy
Voltage	600 VAC 600 VDC	± 1.5 % + 3d ± 1.2 % + 2d
Current	10 AAC 10 ADC	± 3.0 % + 5d ± 2.5 % + 5d
Resistance	60 MΩ	± 1.2 % + 2d
Frequency	10 MHz	± 1.2 % + 3d
Capacity	100uF	± 3.0 % + 5d
General
Display resolution	4000d
Overvoltage category	CAT III 1000 V / CAT IV 600 V
Standard	EN 61010-1
Supply	1x 9 V battery
Dimensions	150 x 70 x 48 mm
Weight	± 255 g (incl. battery)
Including	Test leads, bag, batteries, manual
