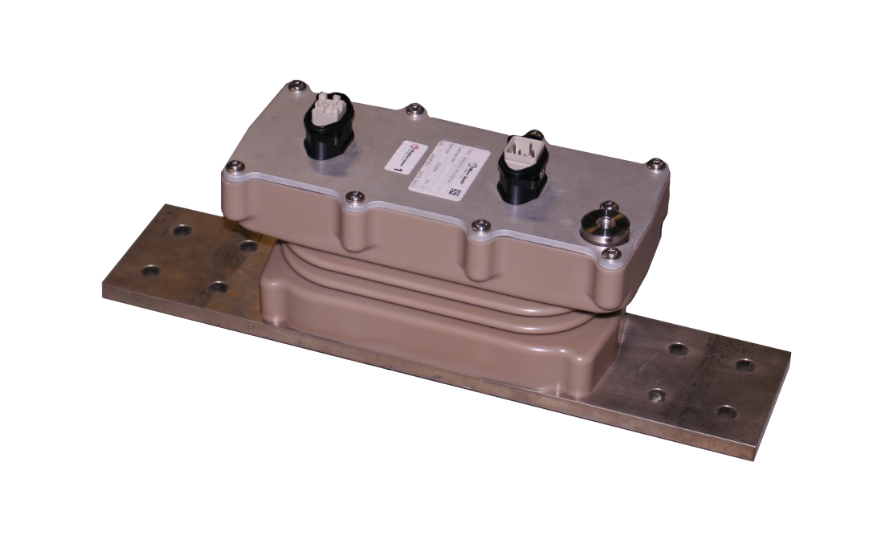

CATenergy DC

The Mors Smitt CATenergy DC sensor provide an all in one proven, reliable, accurate and cost-effective solution for rolling stock. Based on its full energy measurement function integration with voltage and current measurement and energy calculation according EN 50463, the CATenergy DC is the perfect compact solution for energy measurement implementation on existing or new build rolling stock.

Functions

• DC Voltage Measurement Function (VMF) according EN 50463
• DC Current Measurement Function (CMF) according EN 50463
• DC Energy Calculation Function (ECF) according EN 50463

Catenary voltage

• From 600Vdc to 3000 VDC according EN 50163

Nominal current

• From 900 A to 4000 ADC according EN 50463
• Accurate measurement from 50 ADC (1% error)

Accuracy

• Class 0,5R for DC Voltage Measurement Function according EN 50463
• Class 1R for DC Current Measurement Function according EN 50463
• Class 0,2R for DC Energy Calculation Function according EN 50463

Insulation

• OV4-PD4 according EN 50124-2
• Electrical shock up to 200 kV
• Dielectric 2120 VDC, 1 min
• Dielectric 25 kV, 50 Hz, 1 min for AC catenary fall withstand in case on roof installation

Digital output

• Ethernet 10/100 Mb
• RS 485

IP rate

• IP66 according  EN 60529

Fire and Smoke

• R22, HL3 according EN 45545-2

Operating Temperature

•  -4 0°C to +70 °C, class TX according EN 50155

Power supply

• Full range from 24 to 110 VDC

Total weight

• From 8 to 12,5 Kg depending on the current range measurement

Dimensions

• 450 * 150 * 100 (length * height * width)

Installation

• Rooftop mounting
• Cabinet mounting
