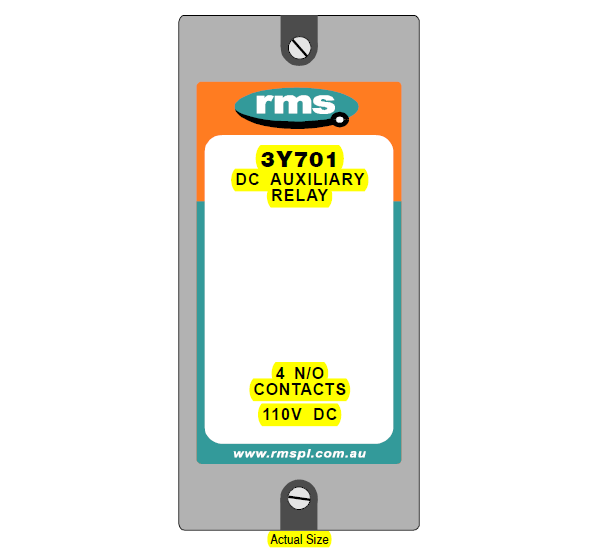

3Y701 700 Series DC Auxiliary Relay

Features

• Ten year factory warranty
• Plug in measuring module
• Double insulated high impact polystyrol case
• Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
• Proven designs based on over 20 years of field service in hundreds of varied & demanding applications
• Surge protection diode
• Silver contacts (Optional gold)
• Tolerance to shock & vibration for generator, compressor & mobile applications

Description

The 3Y701Series are heavy duty attracted armature general purpose auxiliary relays suitable for applications where high levels of electrical isolation, DC switching capacity & reliability is required. The 700 Series range of electronic measuring relays are manufactured as a modular approach to electrical system protection & control. Designed to meet rigid Australian & international specifications the 700 Series provide a flexible, cost effective & extremely reliable solution for a multitude of applications under electrically hostile conditions.
