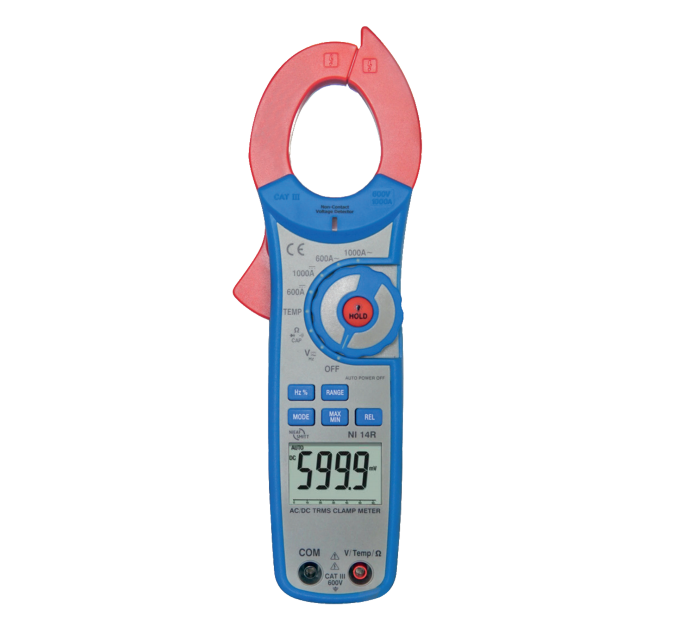

NI 14R Complete current clamp

The complete and versatile current clamp NI 14R is an elegant and
ergonomic shaped instrument.

This clamp is suitable for measuring AC/DC current (up to 1000 A), voltage, resistance capacity frequency and temperature. The measured values are displayed clearly on the LCD display, including backlight and bargraph.

Kenmerken

• True RMS
• AC/DC voltage
• AC/DC current
• Non contact voltage detection
• Resistance, capacity, frequency
• Continuity
• Temperature
• Min-max hold
• Display hold
• LCD backlight

Specifications

Functions	Max. range	Accuracy
Voltage	600 VAC 600 VDC	+ 1.5 % + 2d + 0.1 % + 1d
Current	1000 AAC 1000 ADC	+ 2.5 % + 4d + 2.0 % + 5d
Frequency	10 MHz	+ 1.2 % + 2d
Resistance	60 MΩ	+ 3.0 % + 5d
Capacity	4000 μF	+ 2.5 % + 5d
Temperature	760 °C	+ 3.0 % + 3d
General
Max. conductor seize	35 mm
Max. jaw opening	40 mm
Display resolution	6000d
Overvoltage category	CAT III 600 V
Standard	EN 61010-1
Supply	1x 9 V battery
Dimensions	232 x 77 x 39 mm
Weight	271 g (incl. battery)

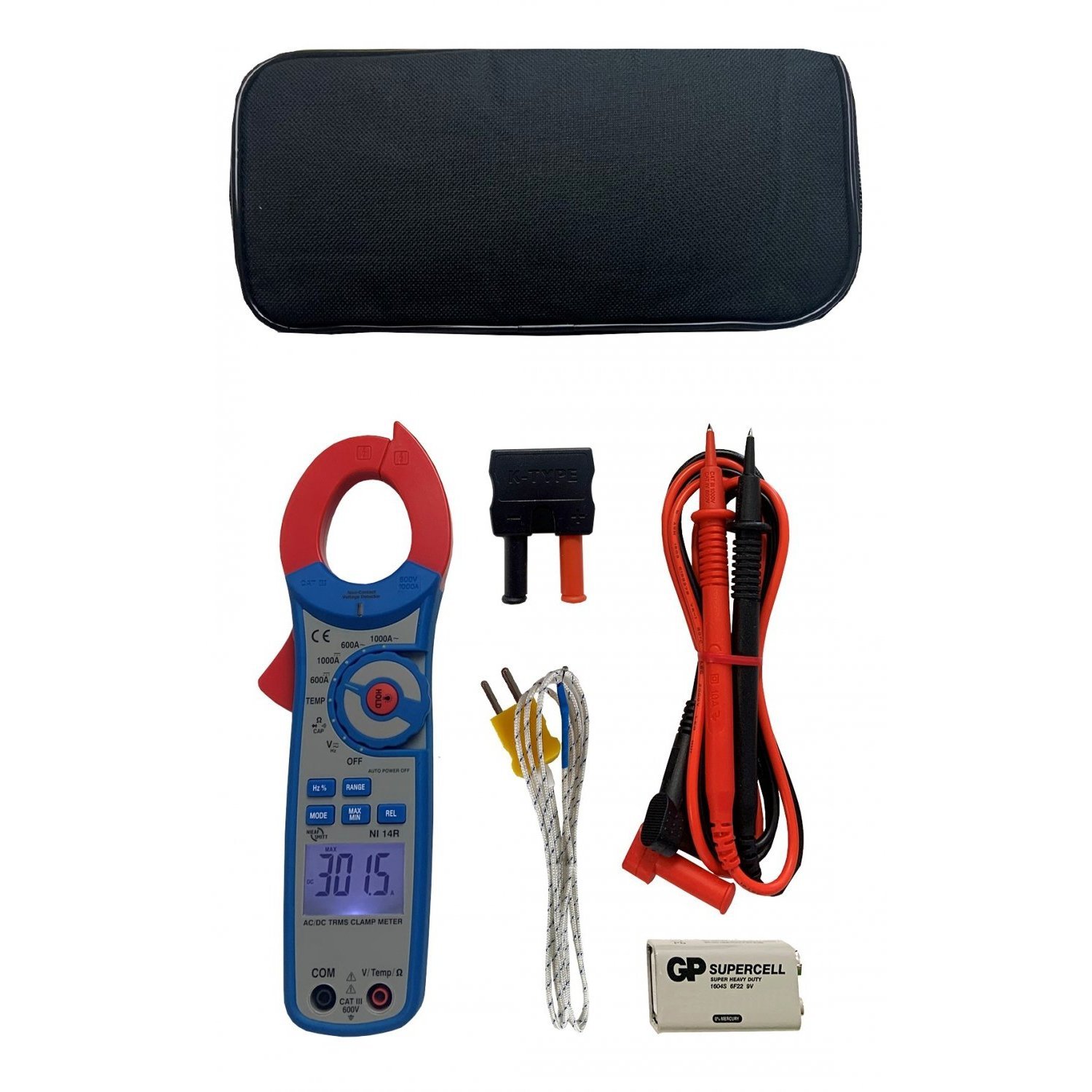

Including	Test leads, type K thermo couple, bag, manual, battery
