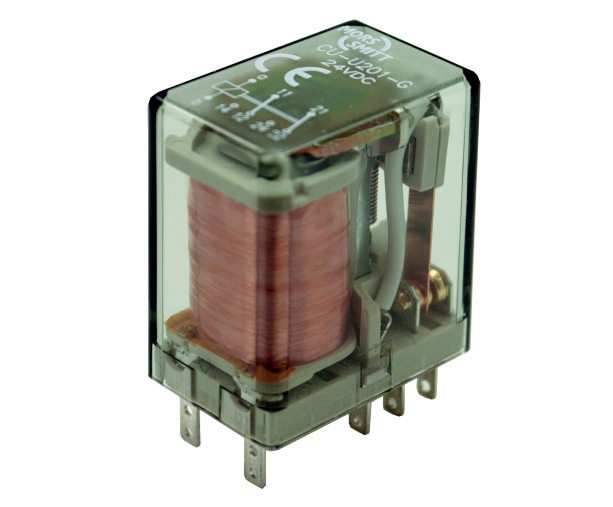

CU-U200-U relay - High contact life

Name: CU-U200-U relay - High contact life
Brand: Own brand
Availability: InStock

Summary

Description

Miniature railway relay with one double make, double break contact. High maximum contact current and long electrical life.

Relay for plug-in mounting (CU version) or for PCB mounting (CP version).

The construction of the relay and choice of materials makes the CU/CP-U200-U relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

With a very compact design and a wide range of sockets, the CU/CP-U200-U relay is an easy and flexible solution to use.

Application

These relay series are designed for rolling stock applications where available space is limited and a high contact current is used or long electrical life is required.

Features

Miniature plug-in / PCB relay
1 double make/double break contact
High maximum current
Long electrical life
Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
Wide range sockets
Transparent cover
Optional positive mechanical keying relay to socket
