Obsolete Railway Relay Sockets

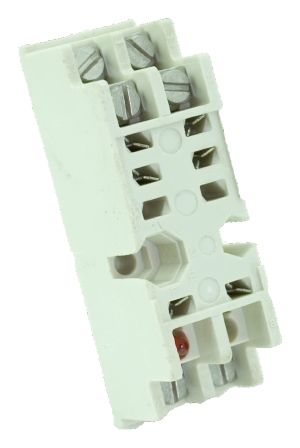

V13 socket - Screw terminal, wall mount, diode and LED
ObsoleteSummary
This product is no longer available. The replacement socket is the V16.
Click here to go to the product page of the V16.
Description
The V13 is a surface / wall mount relay socket. The V13 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.
Optional 35 mm rail mount with A109 rail clip.
The V13 has a back EMF protection diode included, to prevent a voltage surge to protect connected electronics. Also a LED is included to show clearly if the coil is energized.
To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.
Application
The V13 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.
Suitable for the CU-U200/300-U relay series only.
Features
-
Surface / wall mount
-
Optional 35 mm rail mount with A109 rail clip
-
Sturdy screw terminals
-
Back EMF protection diode
-
LED indicator
-
Space saving
-
Suitable for all CU-U200/300-U relay series only
-
Up to two wires of 1.8 mm2 per connection terminal
-
Positive mechanical keying
-
Bifurcated female receiver for tight grip relay pin
-
Clear terminal ID
Benefits
-
Proven reliable
-
Long term availability
-
Easy to maintain
-
Low life cycle cost
-
No maintenance
Railway compliancy
-
EN 50155 Electronic equipment used on rolling stock for railway applications
-
IEC 60571 Electronic equipment used on railway vehicles
-
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
-
IEC 60715 Dimensions of low voltage switchgear and controlgear
-
NF F 62-002 On-off contact relays and fixed connections
