WDDE-U200 relay - Instantaneous 2 pole and one-shot 2 pole

Name: WDDE-U200 relay - Instantaneous 2 pole and one-shot 2 pole
Brand: Own brand
Availability: InStock

Summary

Description

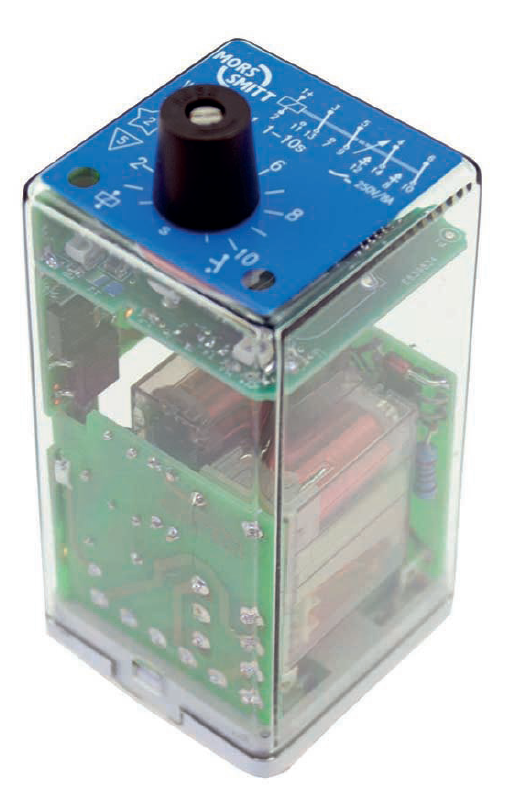

Plug-in electronic railway one shot timer relay with two instantaneous change-over contacts and two one shot change-over contacts. When the relay is activated the one shot change-over contacts are activated with one pulse. The pulse time is adjustable with a lockable knob. The relay can also be supplied with a fixed pulse time (no knob). The relay is equipped with two LEDs to indicate presence of power supply and energizing of the coil.

The construction of the relay and choice of materials make the WDDE-U200 /U300 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets makes the WDDE-U200/U300 relay an easy and flexible solution to use.

Application

These relay series are designed for demanding rolling stock applications.
The WDDE-U200/U300 is used in applications where instantaneous contacts and contacts with one pulse in output are necessary.

Features

One-shot time delay and instantaneous relay
Compact plug-in design
2 C/O one-shot contacts and 2 C/O instantaneous contacts
Pulse time adjustable with a lockable knob
Pulse times between 0.1 s...60 min
Also available with fixed pulse time (no knob)
Two LEDs for status indication
Flat, square and silver plated relay pins for excellent socket connection
Integrated snap lock
Optional positive mechanical keying relay to socket

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-1 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, EN 45545-2 Fire behaviour - Railway rolling stock

Certifications

Available versions

Type	Nominal voltage (VDC)
WDDE-U201	24
WDDE-U202	48
WDDE-U203	72
WDDE-U204	110
WDDE-U205	96
WDDE-U207	36
WDDE-U208	55
WDDE-U209	64
WDDE-U210	120
WDDE-U211	80
WDDE-U213	125
WDDE-U215	220
Other voltages on request
