V14 socket - PCB mount

Name: V14 socket - PCB mount
Brand: Own brand
Availability: InStock

Obsolete

Summary

This product is no longer available. The replacement socket is the V18.

Click here to go to the product page of the V18.

Description

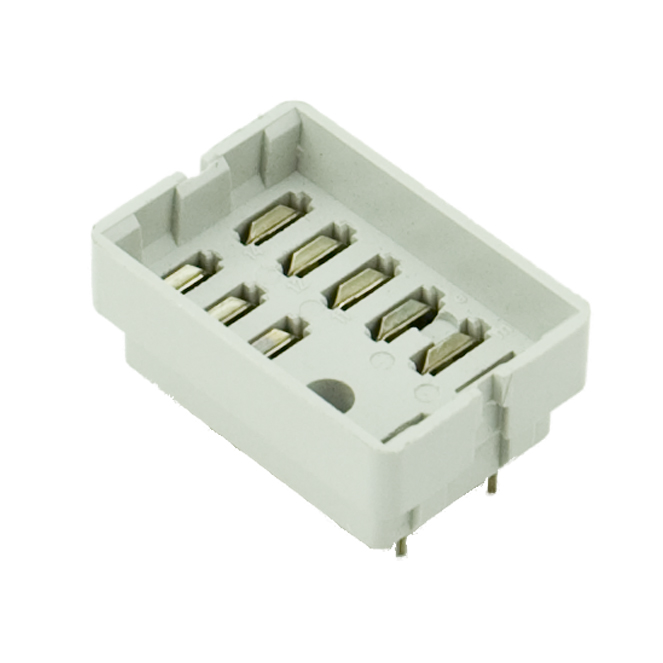

The V14 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB.

There is only one way of connecting the relay to the socket to guarantee correct placement of the relay.

Application

The V14 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for the CP relay series.

Features

PCB mount
Space saving
Suitable for all CP relay series
Bifurcated female receiver for tight grip relay pin
Clear terminal ID

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
