V25 socket - Faston terminal, rail mount

Name: V25 socket - Faston terminal, rail mount
Brand: Own brand
Availability: InStock

Obsolete

Summary

This product is no longer available. The replacement sockets are the V23 and the V29.

Click here to go to the product page of the V23.

Click here to go to the product page of the V29.

Description

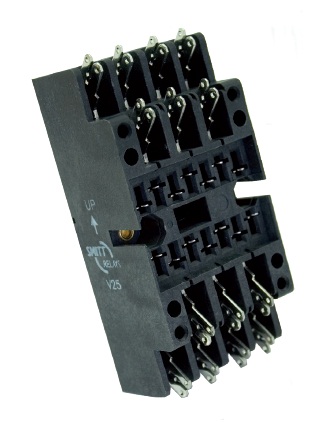

The V25 is a 35 mm rail mount relay socket. The V25 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Clear UP arrow for correct mounting.

Application

The V25 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for all D-U relay series.

Features

35 mm rail mount
Sturdy faston terminals
Space saving
Suitable for all D-U relay series
1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
Positive mechanical keying
Bifurcated female receiver for tight grip relay pin
Clear terminal ID

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
IEC 60715 Dimensions of low voltage switchgear and controlgear - mounting rail
NF F 62-002 On-off contact relays and fixed connections
