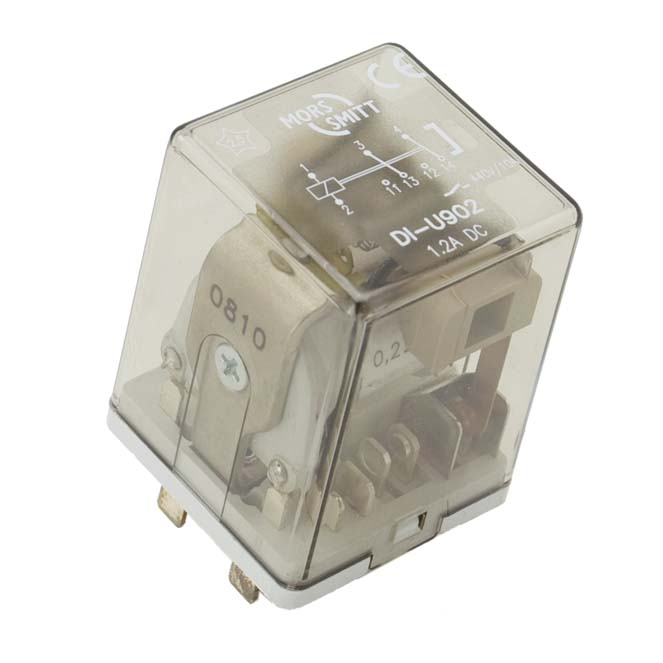

DI-U900 relay - Current monitoring

Summary

Description

Plug-in current monitoring railway relay with two change-over contacts. Suitable for AC or DC currents.

Proven reliable operation in switching high DC voltage / inductive loads and low currents. Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

The construction of the relay and choice of materials makes the DI-U900 relay suitable to withstand low and high temperatures, shock & vibrating and dry to very humid environments.

Compact design, choice of many options and a wide range of sockets makes the DI-U900 relay an easy and flexible solution to use.

Application

These relay series are designed for demanding rolling stock applications. The DI-U900 is used in applications for current monitoring or where switching is activated by a fixed current level.

Features

Current detection relay
Compact plug-in design
AC or DC coil
2 C/O contacts
Magnetic arc blow-out
Flat, square silver plated relay pins for excellent socket connection
Wide range sockets
Integrated snap lock
Transparent cover
High DC breaking capacity
Optional positive mechanical keying relay to socket
Flexibility by many options

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
IEC 60529 European standard describes the protection class (IP-code)
NF F 62-002 On-off contact relays and fixed connections

Certifications

Available versions

Type	Nominal current (ADC)
DI-U901	2.7
DI-U902	1.2
DI-U903	0.39
DI-U904	0.12
DI-U905	0.082
DI-U906	0.018
DI-U907	0.063
Other currents on request

Type	Nominal current (AAC)
DI-U950	3.3
DI-U951	2.2
DI-U952	1.0
DI-U953	0.56
DI-U954	0.27
DI-U955	0.12
DI-U956	0.082
Other currents on request
