CU-U900-D relay - Current monitoring

Name: CU-U900-D relay - Current monitoring
Brand: Own brand
Availability: InStock

Summary

Description

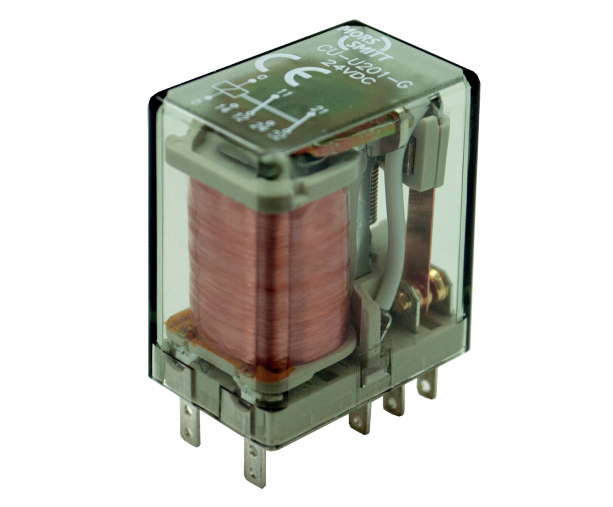

Miniature current monitoring railway relay with one change-over and one normally open contact. Suitable for AC currents. The contacts are weld-no-transfer contacts: they are mechanically forced in the same position. Very sensitive and high insulation between coil and contact. Relay for plug-in mounting (CU version) or for PCB mounting (CP version).

The construction of the relay and choice of materials makes the CU/CP-U900-D relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

With a very compact design and a wide range of sockets, the CU/CP-U900-D relay is an easy and flexible solution to use.

Application

These relay series are designed for rolling stock applications where available space is limited. The CU/CP-U900-D is used in applications for AC current monitoring or where switching is activated by a fixed AC current level.

Features

Miniature current monitoring relay
Instantaneous, 1 C/O and 1 N/O contact
Weld-no-transfer contacts
AC coil
Very sensitive
High insulation between coil and contact
Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
Wide range sockets
Transparent cover
Optional positive mechanical keying relay to socket
