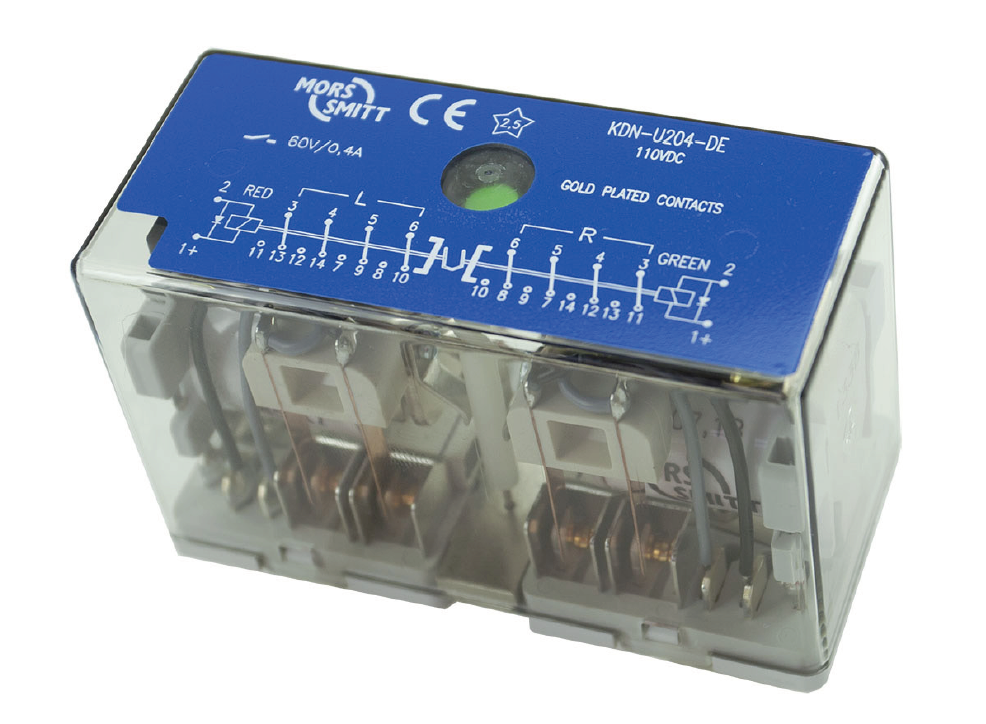

KDN-U200 relay - Latching, 8 pole
Summary
Description
Plug-in bistable railway relay with eight change-over contacts. The contacts remain in the last powered position, the position is clearly shown via a position indicator. Bistable by means of two coils and a mechanical rocker mechanism. The two separate coils are galvanically isolated.
Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.
The construction of the relay and choice of materials makes the KDN-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to very humid environments.
Compact design, choice of many options and a wide range of sockets makes the KDN-U200 relay an easy and flexible solution to use.
Application
These relay series are designed for demanding rolling stock applications. The KDN-U200 is used in applications where eight contacts are used in one relay and the contacts are set and reset with permanent power or impulses.
Features
-
Latching (bistable) relay
-
Compact plug-in design
-
8 C/O contacts
-
2 galvanic isolated coils
-
Clear position indicator
-
Magnetic arc blow-out
-
Flat, square and silver plated relay pins for excellent socket connection
-
Wide range sockets
-
2 integrated snap locks
-
Transparent cover
-
High DC breaking capacity
-
Optional positive mechanical keying relay to socket
-
Flexibility by many options
Benefits
-
Proven reliable
-
Long term availability
-
Easy to maintain
-
Low life cycle cost
-
No maintenance
Railway compliancy
-
EN 50155 Electronic equipment used on rolling stock for railway applications
-
IEC 60571 Electronic equipment used on railway vehicles
-
IEC 60077 Electrical equipment for rolling stock in railway applications
-
IEC 60947 Low voltage switch gear and control gear
-
IEC 61373 Rolling stock equipment - Shock and vibration test
-
EN 50121 Electromagnetic compatibility for railway applications
-
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
-
IEC 60529 European standard describes the protection class (IP-code)
-
NF F 62-002 On-off contact relays and fixed connections
Certifications
Available versions
| Type | Nominal voltage (VDC) | |
| KDN-U201 | 24 | |
| KDN-U202 | 48 | |
| KDN-U203 | 72 | |
| KDN-U204 | 110 | |
| KDN-U205 | 96 | |
| KDN-U206 | 12 | |
| KDN-U207 | 36 | |
| Other voltages on request | ||
