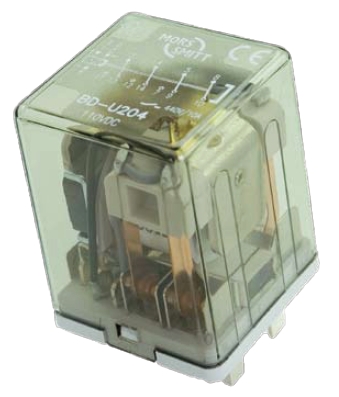

BD-U200 relay - Latching, plug-in 4 pole

Summary

Description

Plug-in bistable railway relay with three change-over contacts and one normally closed contact. The contacts remain in the last powered position. Bistable by means of a permanent magnet.

Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

The construction of the relay and choice of materials make the BD-U200 relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to humid environments.

Compact design, choice of many options and a wide range of sockets makes the BD-U200 relay an easy and flexible solution to use.

Application

This relays are designed for demanding rolling stock applications. The BD-U200 is used in applications where the contacts are set and reset with permanent power or impulses.

Features

Latching (bistable) relay
Compact plug-in design
2 combined coils
3 C/O contacts and 1 N/C contact
Magnetic arc blow-out
Flat, square silver plated relay pins for excellent socket connection
Wide range of sockets
Integrated snap lock
Transparent cover
High DC breaking capacity
Optional positive mechanical keying relay to socket
Flexibility by many options

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
EN 50121 Electromagnetic compatibility for railway applications
NF F16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
IEC 60529 European standard describes the protection class (IP-code)
NF F 62-002 On-off contact relays and fixed connections

Certifications

Available versions

Type	Nominal voltage (VDC)
BD-U201	24
BD-U202	48
BD-U203	72
BD-U204	110
BD-U205	96
BD-U206	12
BD-U207	36
Other voltages on request
