Instantaneous relays

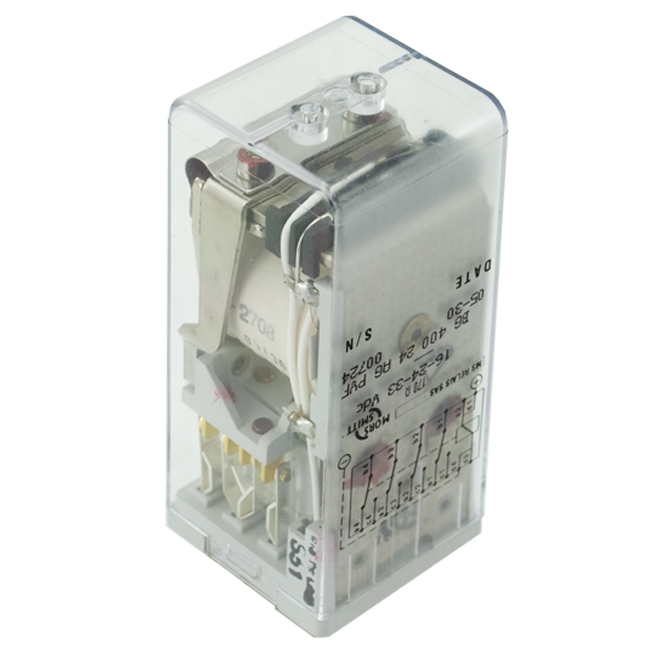

BM 400 relay - Mixed load, 4 contacts
Summary
Description
The BM 400 relay has 3 silver double make / double break C/O contacts (form Z) and one gold bifurcated C/O contact.
The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement).
The resistance to impact and vibration is conform to standards in force for Railway Transported Equipment. Positive mechanical keying of relay to socket is built into relay and socket during manufacture and terminal identifications are clearly marked on identification plate that is permanently attached to the relay.
The BM 400 relays is pluggable in the following sockets: EA 102 B, EA 102 BF, EA 103 BF, EA 104 B, EA 104 BF, EA 105 BF, EA 112 BF.
Application
The BM 400 relay is designed for both power levels and low level signals are being switched for general purpose heavy duty applications such as lighting, pumps and fans, as standard weld no transfer design for safety critical applications such as door control, emergency brake failure, interlocking traction
and breaking with a gold bifurcated contact for dry circuit signal information.
and breaking with a gold bifurcated contact for dry circuit signal information.
Features
-
Instantaneous relay
-
Plug-in design with secure locking feature for maximum ease of maintenance
-
3 double make / double break C/O silver contacts (form Z)
-
1 gold bifurcated C/O contact • Contact life (mechanical) of 100 million cycles
-
-40 °C...+80 °C operating temperature
-
Contacts cross pollution barrier
-
Weld no transfer function for silver contacts
Benefits
-
Proven reliable in heavy duty application
-
3 silver contacts power contact and 1 gold bifurcated dry circuit contact
-
Long life cycle
-
Easy to maintain and replace
-
Low life cycle cost
-
No maintenance
Railway compliancy
-
NF F 62-002 Rolling stock - Instantaneous relays contacts and sockets
-
NF F16-101/102 Fire behaviour - Railway rolling stock
