D3v72S-B railway panel indicator (DISCONTINUED)

Summary

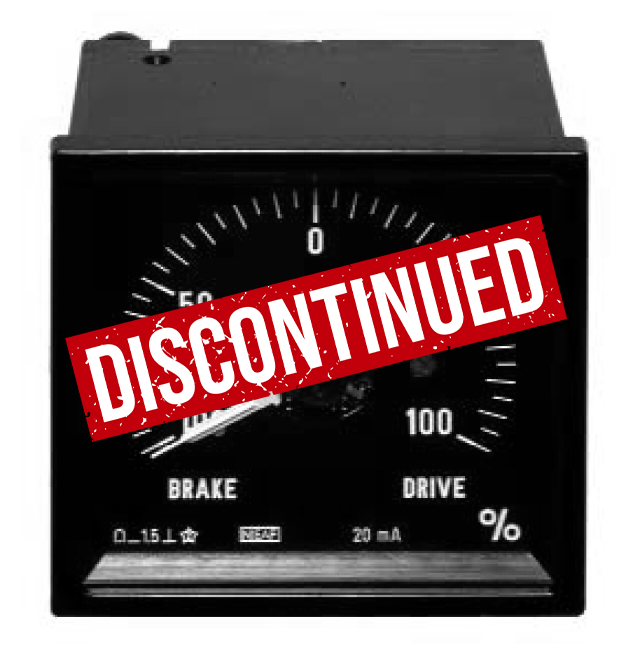

Square panelmeter for railway applications, single pointer

Specifications

General Specifications

Accuracy
1.5% F.S.D.
0.75 % / 10 °C

Operating temperature
-25 °C...+70 °C

Humidity
at 40 °C max. 95 %

protection
front IP54
rear IP50 (terminals IP00)

Vibrations
5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155)

Shock
acc. EN 61373

Test voltage
2 kV

Illumination
Leds, any voltage between 24 and 110 VAC/VDC

Scale and pointer
Black scale, white pointer and figures

Terminals
Movement : M5, illumination : faston 6.3 x 0.8
Signal leds : screw terminals

Glass
low reflection

Panel mounting
with two springs, panel-cutout 68 x 68 mm (+0,8)

International standards
IEC 571
EN 60051
EN 50155
EN 50121

Movement signal

0...20 mA 4...20 mA 0...2.5 mA 0...10 V other inputs on request zero left or middle

Options

White scale with black pointer and printing
Pointers yellow and red
Brand label on scale
Red line marking(s) on the scale Coloured band(s) on the scale

Codes
B : Acc. EN 50155 (standard)
W : White scale
