D3v2-144S-B railway panel indicator (DISCONTINUED)

Summary

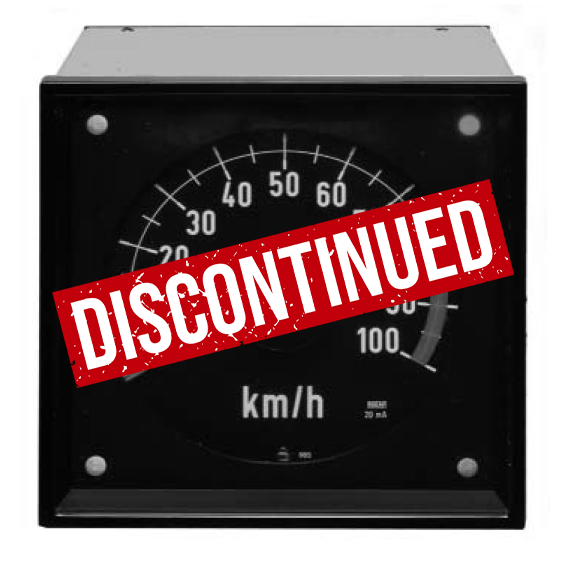

Square panelmeter for railway applications, double pointer

Specifications

General specifications

Accuracy
1.5 % F.S.D.
0.75 % / 10 °C

Operating temperature
-25 °C...+70 °C

Humidity
at 40 °C max. 95 %

Protection
front IP54
rear IP50 (terminals IP00)

Vibrations
5...150 Hz, 2 g randaom 3 x 5 h acc. EN 61373 (50155)

Shock
acc. EN 61373

Test voltage
2 kV

Illumination
LEDS, any voltage between 24 and 110 VAC/VDC

Scale and pointer
Black scale, white pointer and figures

Terminals
Movement: M5, illumination: faston 6.3 x 0.8
Signal Leds: screw terminals

Glass
Low-reflection

Panel-mounting
With four springs, panel cutout 138 x 138mm (+1)

International Standards

IEC 571
EN 60051
EN 50155
EN 50121

Movement signal

0...20 mA
4...20 mA
0...2.5 mA
0...10 V
other inputs on request zero left or middle

Codes

B : acc. EN50155 (standard)
xL : Signal Led's (on request)
x = number of Leds
W : White scale
T : km counter

Options

White scale with black pointer and printing
Pointers yellow, white or red
Brand label on scale
Red-line marking(s) on the scale
Built in km-counter (not resetable)
Signal leds, max 4
