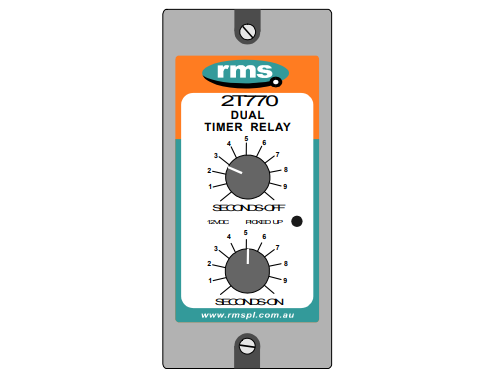

2T770 700 Series Recycling Timer

This product is obsolete.

Consider the alternative FDC4-U200N relay for your application. Note that the FDC4-U200N is not directly equivalent to the 2T770.

Features

• Recycling Timer
• Ten year factory warranty
• Plug in measuring module
• Double insulated high impact polystyrol case
• Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
• Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
• Easy to set calibration scales
• Tolerance to shock & vibration for generator, compressor & mobile applications

Description

The 2T770 Series relays are solid state general purpose flasher relays with electro-mechanical output contacts. Designed for applications wherever a simple continuous cycling time delay is required. The ON and OFF periods can be ordered with different time ranges.

The 700 Series range of electronic measuring relays are manufactured as a modular approach to electrical system protection and control. Designed to meet rigid Australian and international specifications the 700 Series provide a flexible, cost effective and extremely reliable solution for a multitude of applications under electrically hostile conditions.
