Current Protection

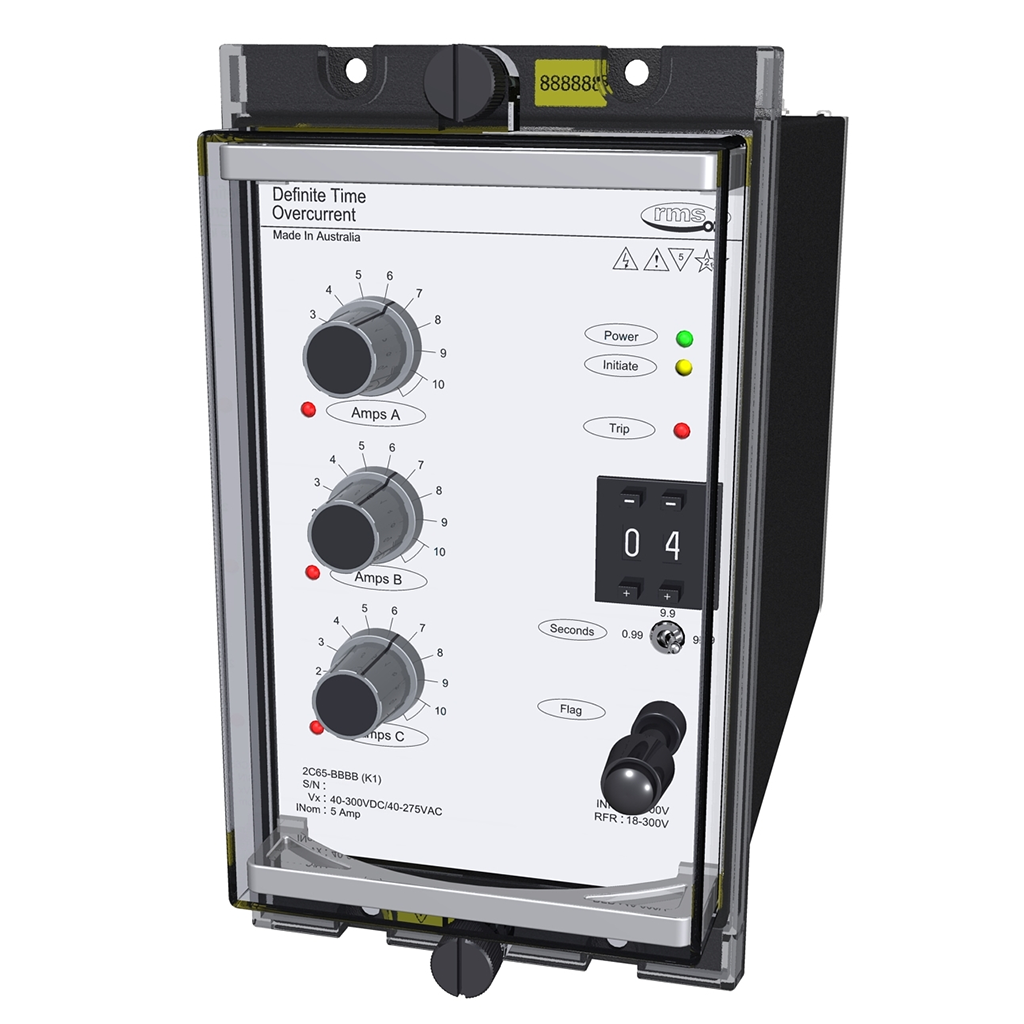

2C65 Current Check Relay
Summary
Features
-
10:1 PU setting ranges
-
5 – 50% or 20 – 200% of nominal input current
-
1A or 5A nominal CT’s
-
Fast inst. O/C pick up (<15ms at="" 2x="" setting="" div="">
-
Fast O/C reset time (<15ms at="" 2x="" setting="" div="">
-
<5% transient over-reach
-
Eight C/O output contacts
-
0 to 99s time delayed output with +0.5% accuracy
-
Time settings easily selected by digital thumb wheel switches
-
Timing in progress LED
-
Five status inputs
-
User configurable operating logic
-
Hand & remote flag reset
-
40-300V DC auxiliary supply Power supply fail relay drops out if the Auxiliary supply fails.
-
Optional 20-70V DC supply
-
Size 4M56 draw out case
-
Made in Australia
Description
The 2C65 Series relays are adjustable AC current sensing relays designed for high or low voltage power systems where they can be used in a large number of overcurrent applications.
The 2C65 Series relay is a three pole current detector with independently adjustable sensing circuits driving a common adjustable digital setting timing element. Five (5) status inputs & eight (8) relay outputs are provided as standard to allow the 2C65 to be operated in a number of different configurations:
• Time delayed or instantaneous output contacts;
• Phase segregated or 3 phase output contacts;
• Single phase or 3 phase current initiation inputs;
• Timer initiate input logic;
