Navy products (DISCONTINUED)

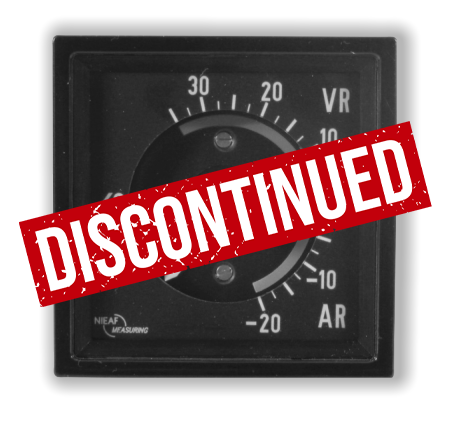

D3v...S/LED Moving coil indicator (DISCONTINUED)

Summary
Indicators for navy applications, pointer rotation max. 240o

Models Dimensions Weight
D3v72S/LED 72 x 72 mm / 50 mm 400 g
D3v96S/LED 96 x 96 mm / 90 mm 750 g
D3v144S/LED 144 x 144 mm / 90 mm 900 g


Shockproof
30 G
STANAG 1008 (NATO)

Inputs
DC Current 1 mA...10 A
DC Voltage 60 mV...500 V
AC Current 1 mA...10 mA
AC Voltage 10 V...500 V


Protection class
IP54



Accuracy
Linear pointer deflection 240o

Scale options
  • White scale with black printing
  • Black scale with white printing
  • White scale with multi colour printing
  • Black scale with multi colour printing

Other scales on request


Extra options
  • Coloured markings
