Obsolete Maritime Products

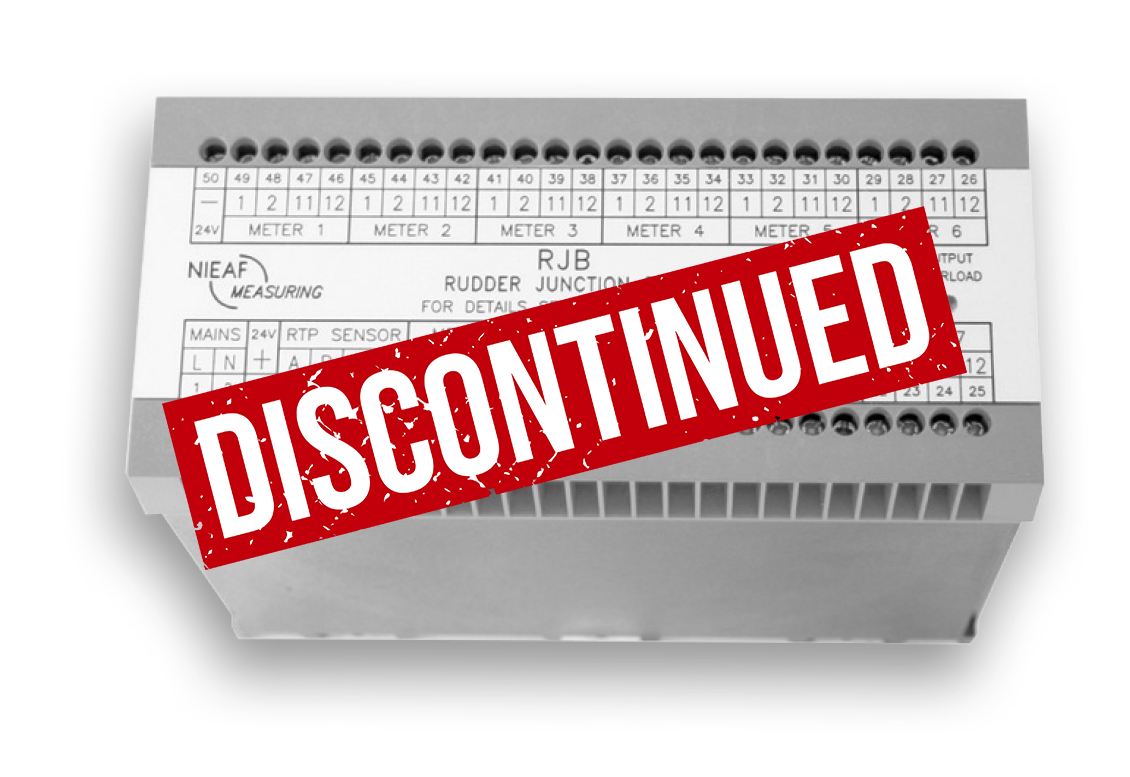

RJB Rudder junction box for RAI-system (DISCONTINUED)

OBSOLETE
Summary

The RJB-V10 is a junction box which connects 10 indicators to a rudder transmitter signal and to a supply of 24 VDC to feed the internal illumination of the RAI-indicators.


Specifications
Dimensions 152 x 118 mm / 73 mm
Input 10…0…10 V (from RTP-V10 rudder angle transmitter)
Output 10 x 10…0…10 V to connect RAI-indicators
10 x 24 VDC to illuminate the RAI-indicators
Supply 230 VAC / 24 VDC
Protection class IP50
Mounting 35 mm rail
Temperature range 0…55 °C
