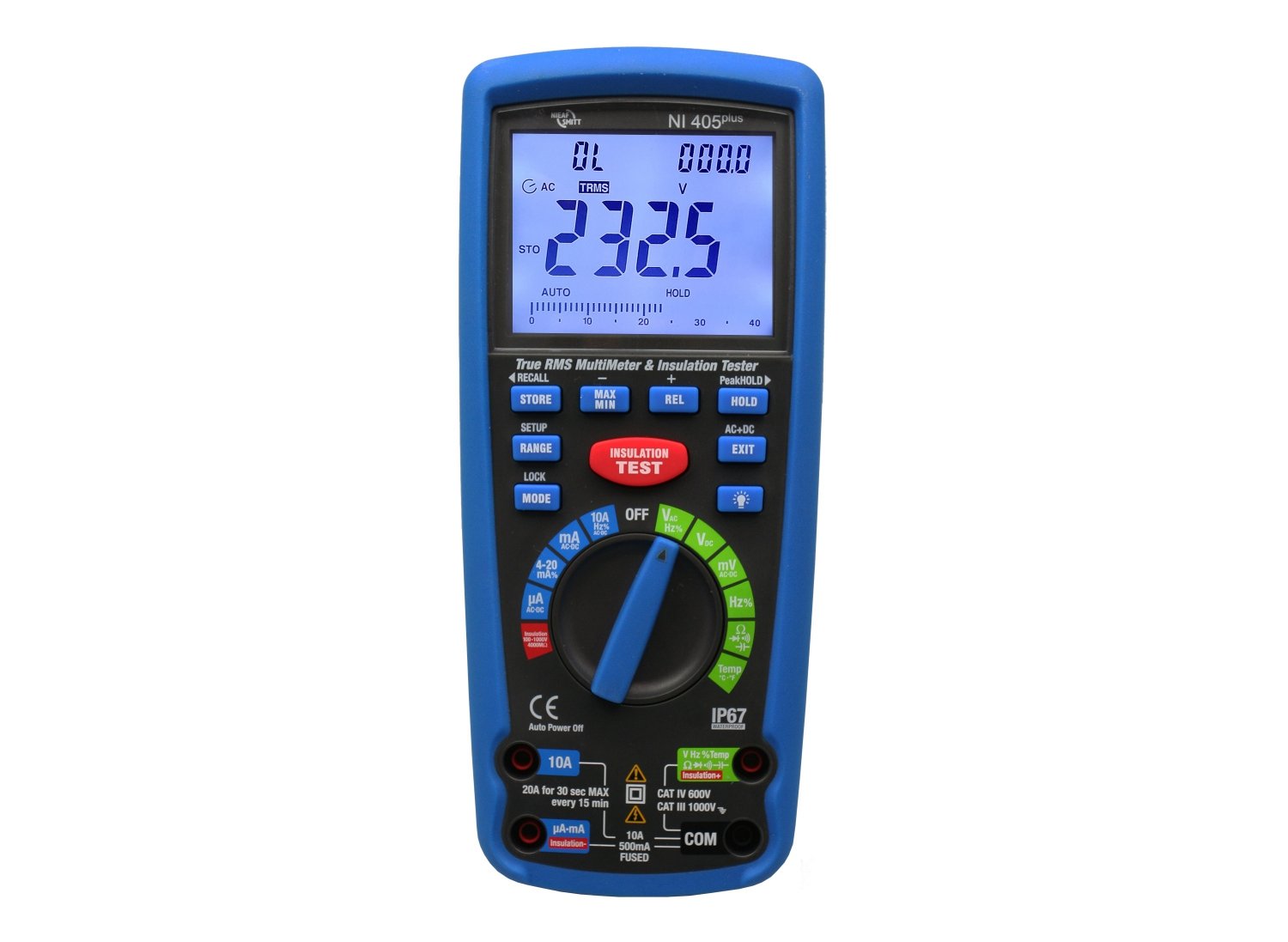

NI 405 plus, multimeter with insulation measurement

Name: NI 405 plus, multimeter with insulation measurement
Brand: Own brand
Availability: InStock

OBSOLETE - 626005050

Summary

Waterproof CAT IV multimeter with insulation measurement

The sturdy and waterproof (IP67) NI 405PLUS is a True RMS multimeter withbuilt-in insulation resistance tester. Insulation resistance measurement can bemeasured with 4 different test voltages and can go up to 4 GΩ.

The NI 405PLUS includes useful extras such as duty cycle measurements andmilliamp readings for analogue 4-20 mA current loops in industrial process monitoring.

The temperature measurement, a clear display with backlight and memory,make this meter perfectly useful for installation engineers. The meter makes iteasy to perform required safety checks.

Features

True RMS
Insulation resistance with 100 /250/500/1000 V
Automatic AC/DC detection
Current measurement up to 20 A (AC/DC)
Resistance
Frequency
Capacitance
Diode / continuity test
IP 67 (waterproof)
Peak hold
Min-max hold
Auto power off
Memory
Large LCD with clear backlight

Specifications

Functions	Range	Resolution	Accuracy
Voltage	1000 VAC 1000 VDC	0.1 V 0.1 V	+ 1.0 % + 30d + 0.06 % + 4d
Current	10 AAC 10 ADC	0.001 A 0.001 A	+ 1.5 % + 30d + 1.0 % + 3d
Resistance	40 MΩ	0.0001 MΩ	+ 0.3 % + 4d
Frequency	40 MHz	0.01 MHz	+ 0.1 % + 1d
Capacity	40 mF	0.001 mF	+ 3.5 % + 10d
Duty cycle	0.1...99.9 %	0.01 %	+ 1.2 % + 2d
Temperature	-50 °C...+1200 °C	°C	+ 1.0 % + 2.5 °C
4-20 mA %	-25...125 %	0.01 %	+ 50d
Insulation	0.1...4000 MΩ	0.001 MΩ	+ 2.0 % + 10d
General
Display resolution	40.000d
Protection class	IP 67
Overvoltage category	CAT III 1000 V / CAT IV 600 V
Standards	EN 61010-1, EN 61557-6
Supply	6x 1.5 V AAA batteries
Dimensions	220 x 96.5 x 60.5 mm
Weight	631 g

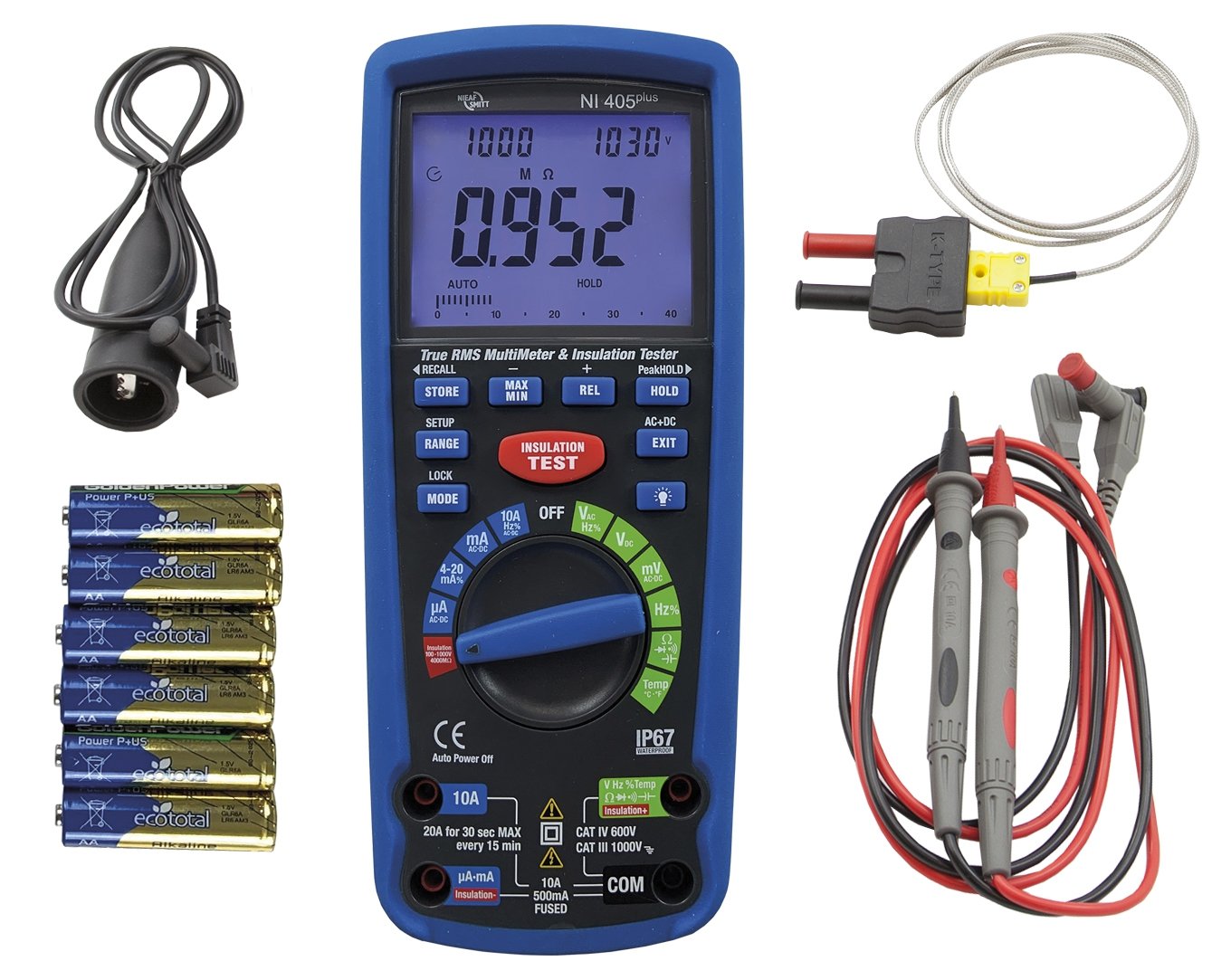

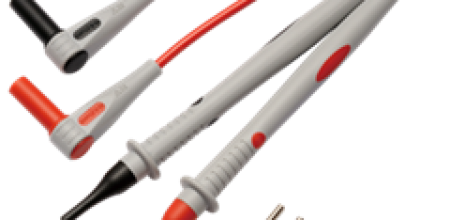

Including	Test lead with alligator clamp, heavy duty test leads, 2 blind plugs, type K thermo couple, batteries, manual
