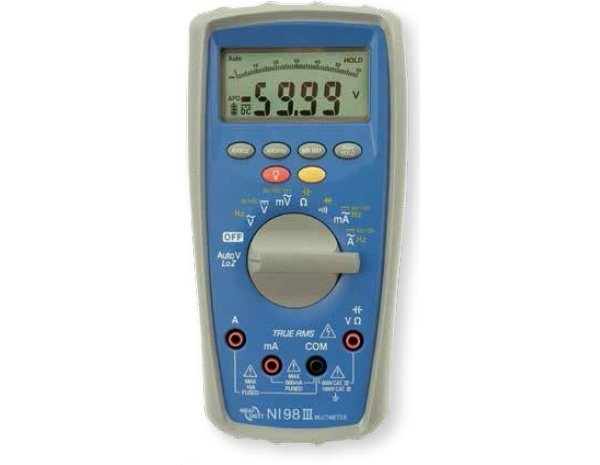

NI 98 III, true RMS digitale multimeter

Name: NI 98 III, true RMS digitale multimeter
Brand: Own brand
Availability: InStock

OBSOLETE

Summary

True RMS CAT IV multimeter

Because of the integrated True RMS technique, the NI 98III is a very accurate, professional and excellent multimeter. Automatic detection of AC/DC voltage and AutoV LoZ functionality (supressing 'ghost voltages') make a very complete multimeter.

A clear display with backlight and the sturdy, ergonomical shape of the housing make the instrument very user friendly. The utility case has a removable protective holster with built-in stand (for workbench applications).

Features

True RMS
AC/DC voltage
AC/DC current
AC+DC measuring
Resistance, capacity and frequency
Continuity- / diodetest
Smart hold
Min-max hold
CAT IV
AutoV LoZ (detection of ‘ghost voltages’)
Voltsense (non-contact voltage detection)
Autoranging
Analoge bargraph
Clear display

Specifications

Function	Range	Accuracy
Voltage	1000 VAC 1000 VDC	+ 1.5 % + 5d + 0.09 % + 2d
Current	10 AAC 10 ADC	+ 1.5 % + 3d + 1.0 % + 3d
Frequency	4 mHz	+ 0.1 % + 2d
Resistance	40 MΩ	+ 0.8 % + 2d
Capacity	4000 μF	+ 3.0 % + 5d

General
Display resolution	6000d
Overvoltage category	CAT III 600 V / CAT IV 1000 V
Standard	EN 61010-1
Supply	1x 9 V battery
Dimensions	190 x 94 x 48 mm
Weight	± 460 g
Including	Test leads, alligator clamp, protective holster, hanging kit, battery, manual
