Timer relays (Obsolete)

XT-35M-DCL1, Digital, programmable, with twilight sensor

OBSOLETE
Summary

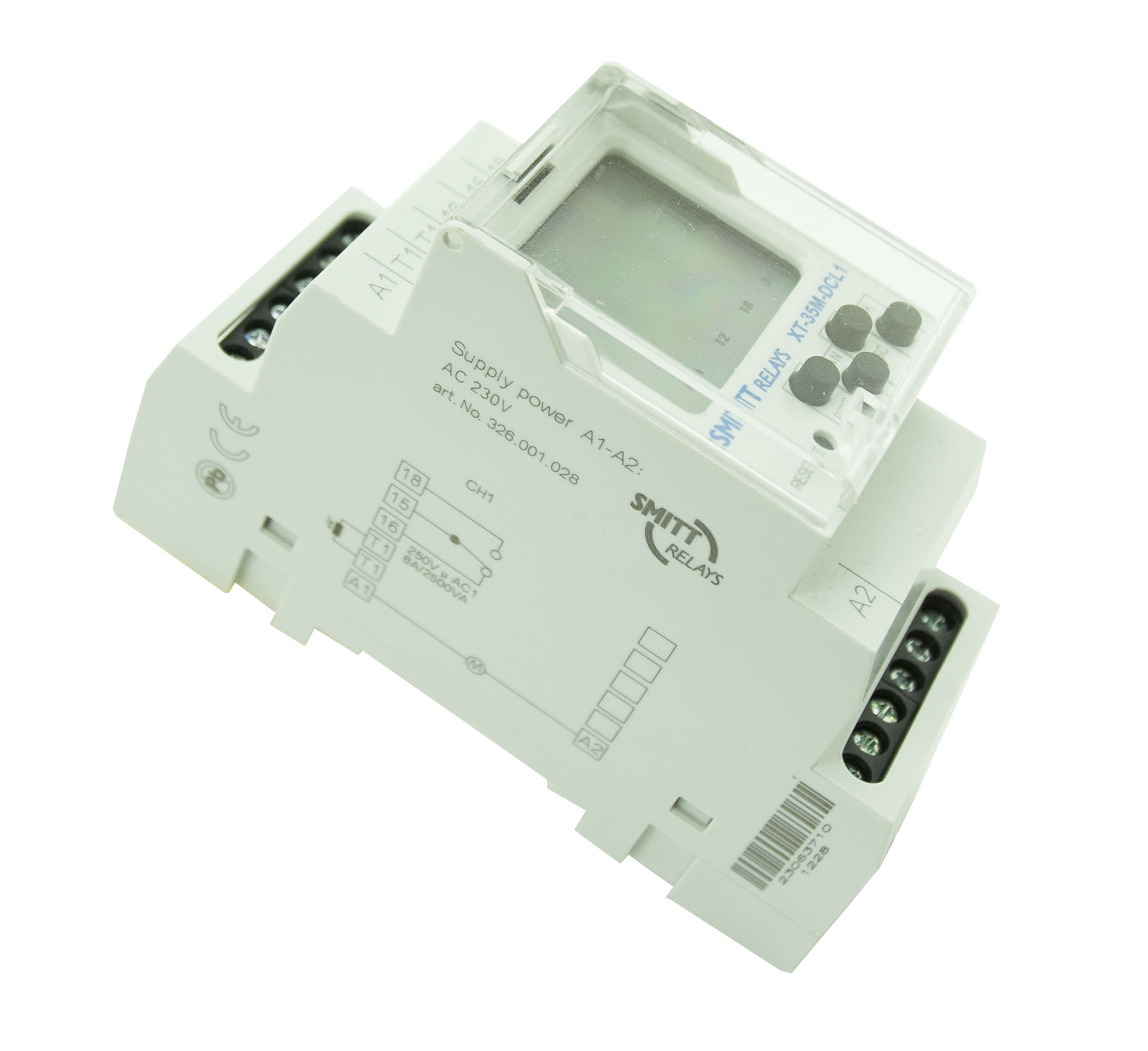

XT-35M-DCL1, Digital, programmable relay with twilight sensor

Digital, programmable time relay with twilight sensor, suitable for control of lights on the basis of ambient light intensity and real time in general purpose applications. The external light sensor (included) is suitable for panel or wall mounting.

It is used for based on the illumination and real time controlling to switch according a program (AUTO) / permanently manual / random (CUBE). With the advantage of the built-in real time clock a blocking function of a twilight switch is adjustable in case a lights is not economical to be in use (for example at night, weekends, etc.).

With the function ‘random switching’ a situation can be simulated of presence in a
house when nobody is at home.

  • Adjustable light intensity 1…5000 lux
  • 100 memory locations
  • Automatic summer/winter time setting
  • Supply voltage 230 VAC
  • 1 changeover contact 8 A
  • Screw connection
  • LED indication
  • Suitable for 35 mm rail mounting

Ordering code

  • XT-35M-DCL1 326001028
