Obsolete Industrial Relay Sockets
V13 relay socket + A109 DIN rail clip
Summary
This product is no longer available. The replacement socket is the V16-D.
Click here to go to the product page of the V16-D.

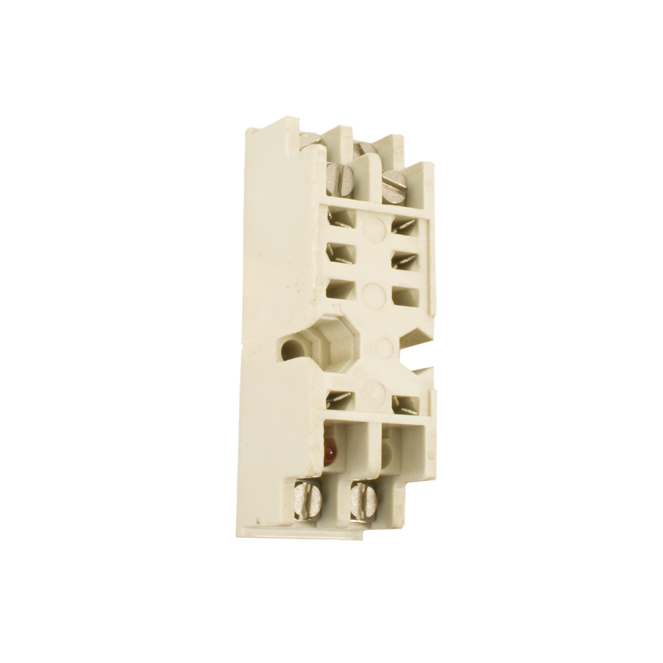

V13, surface/wall mounting, relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.
Description of V13 relay socket
The V13 relay socket is suitable for the CU-V and CU-U relays and. Has no contacts 11 & 12, a LED and internal back EMF diode and is equipped with screw terminals suitable for wires up to 2.5mm2 and available in several different models
Features of V13 relay socket
-
Sturdy screw terminals
-
LED and internal back EMF diode
-
Surface/wall mounting
-
Suitable for 35mm (DIN) rail mouting with A109 rail clip (order separate)
-
Touch proof IP20
-
Suitable for all CU-series power relays
-
Wires up to 2.5mm2 per connection terminal
-
Trifurcated female receiver for tight grip relay pin
Benefits of V13 relay socket
-
Proven reliable
- Long term availability
- Easy to maintain
-
Low life cycle cost
-
No maintenance
