V94 relay socket

This product is no longer available. The replacement socket is the V93 or the V99.

Click here to go to the product page of the V93.

Click here to go to the product page of the V99.

Description

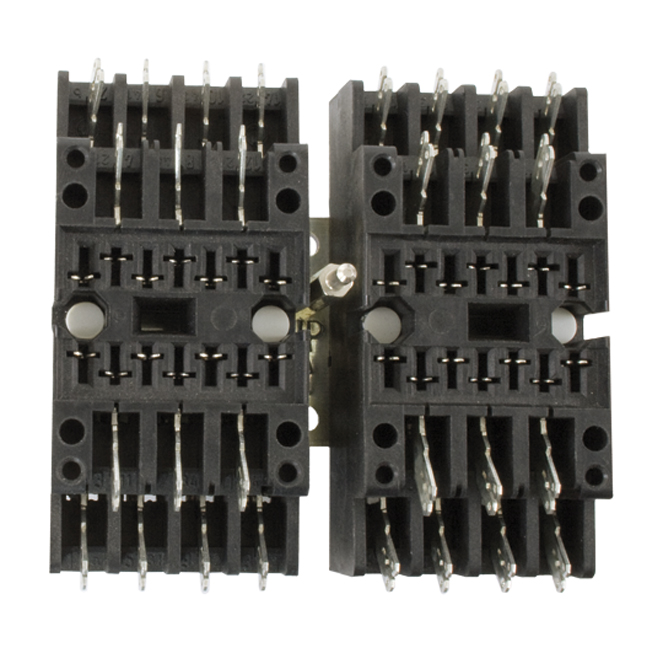

The V94 is a surface / wall mount relay socket. The V94 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting.

Application

The V94 relay socket is suitable for general industrial applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user. Suitable for all D8 and KDN relay series.
