Obsolete Industrial Relay Sockets

V91 relay socket

Obsolete (338001900)
Summary

This product is no longer available. The replacement socket is the V93.
Click here to go to the product page of the V93.

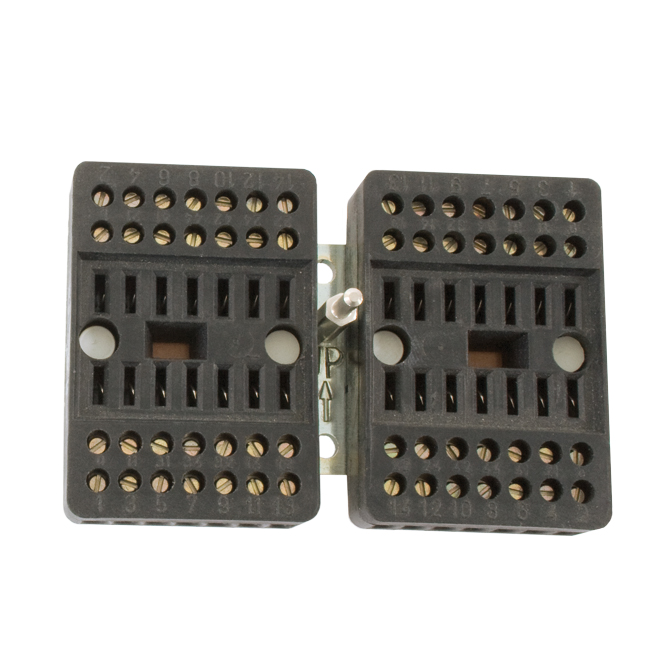

V91, 35mm (DIN) rail mounting, compact relay socket

For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.


Description of V91 compact relay socket

The V91 compact relay socket has one screw terminal per relay contact suitable for two wires up to 2.5mm2


Features of V91 relay socket

  • Screw terminals
  • Rail mounting 35mm (DIN)
  • Touch proof IP20
  • Suitable for all D-series power relays
  • Up to 2.5mm2 wire per connection terminal
  • Trifurcated female receiver for tight grip relay pin

Benefits of V91 relay socket

  • Compact design, space saving
  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance
