35mm (DIN) rail + wall/surface mounting

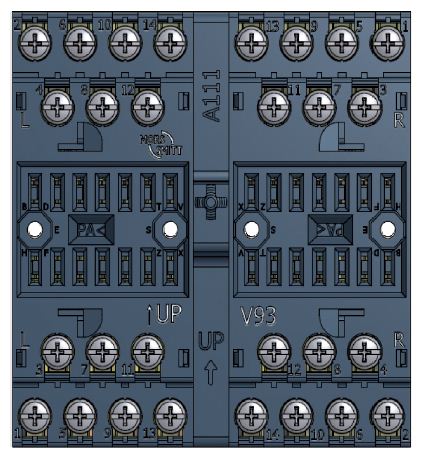

V93 relay socket
338003930Summary
V93, 35mm (DIN) rail mounting + surface mounting, relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays are made easy and cost saving. No maintenance is required for the user.
Description of V93 relay socket
The V93 relay socket has one screw terminal per relay contact suitable for two wires up to 2.5mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.
The V93 has no internal soldering connections which makes it highly reliable. To prevent any faulty relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.
Clear UP arrow for correct 35 mm. rail mounting.
Features of V93 relay socket
- Sturdy screw terminals
-
No internal solderings / connections
-
Surface mounting
- Rail mounting 35 mm (DIN)
- Touch-proof IP20
- Suitable for all D-series power relays
- Up to two wires of 2.5mm2 per connection terminal
- Positive mechanical keying
-
A trifurcated female receiver for tight grip relay pin
-
Clear terminal ID
Benefits of V93 relay socket
- Proven reliable
- Long-term availability
- Easy to maintain
-
Low life cycle cost
-
No maintenance
