Instantaneous plug-in Auxiliary power relays

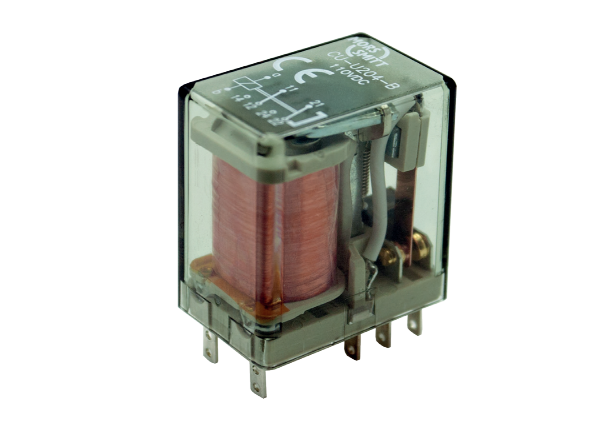

CU-C series. miniature instantaneous relays

Summary

CU-C relays, 2 C/O, 6A

Heavy duty miniature power relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads. Integrated magnetic arc blow-out function.
  • Plug in (CU) or PCB (CP)
  • Miniature power relay
  • 2 C/O contacts
  • AC coil
  • Coil voltages 24...240VAC
  • Magnetic arc blow-out (option B)
  • Flash barriers
  • Cadmium free contacts
  • Equipped with keying
