Timer relays (Obsolete)

XT-17M-S Delay-on Star / Delta

326001006
Summary

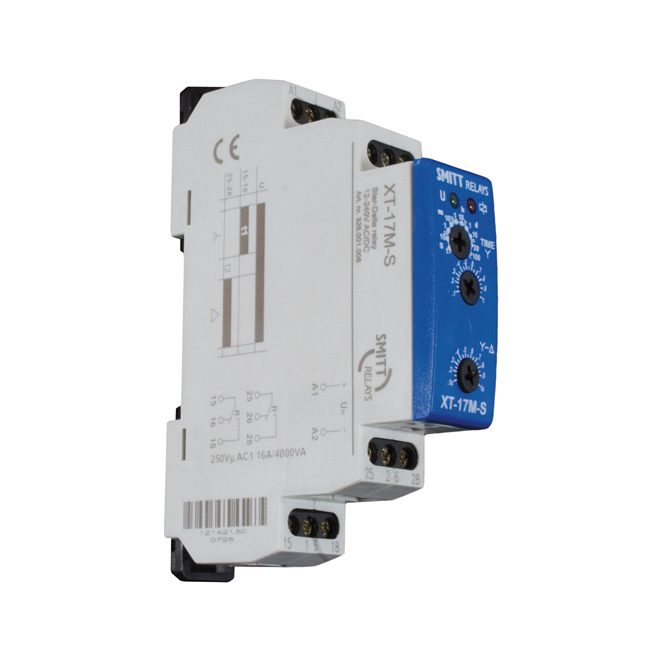

XT-17M-S Delay-on Star / Delta

Single function delay-on time relay, suitable for star/delta engines. Via the adjustable time delay a star/delta motor can be switch on safely.

  • Delay-on

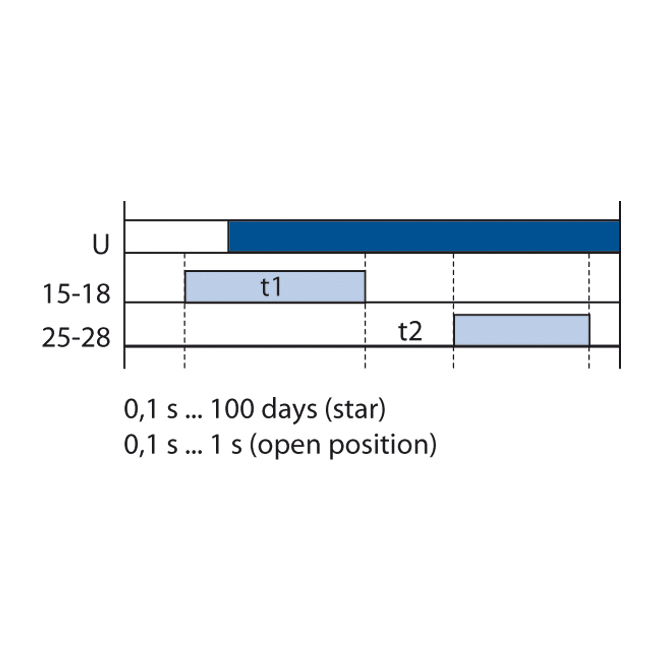

  • Adjustable time delay T1 0.1 s...100 d
  • Adjustable time delay T2 0.1...1 s (star / Δ)
  • Universal supply voltage 12...240 VAC/DC

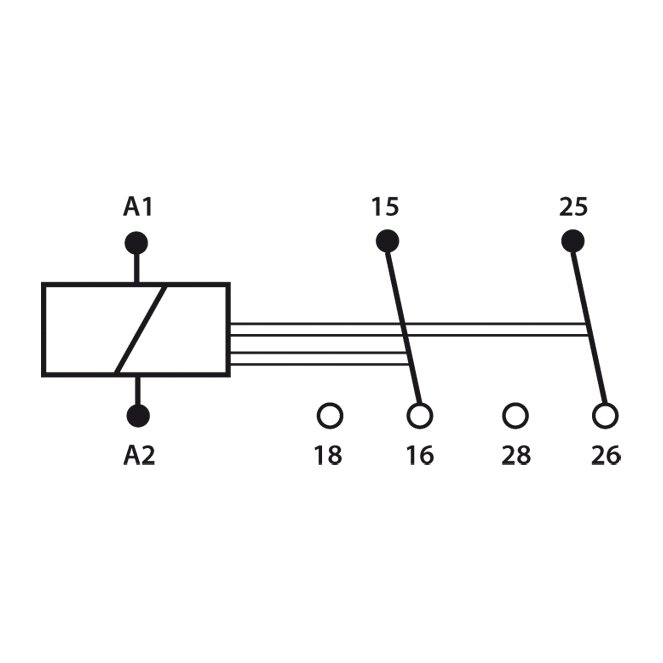

  • 2 changeover contacts 16 A
  • Screw connection
  • LED indication
  • Suitable for 35 mm rail mounting

Ordering code

  • XT-17M-S 326001006
