Timer relays (Obsolete)

XT-17M-C1, multifunction

326001003
Summary

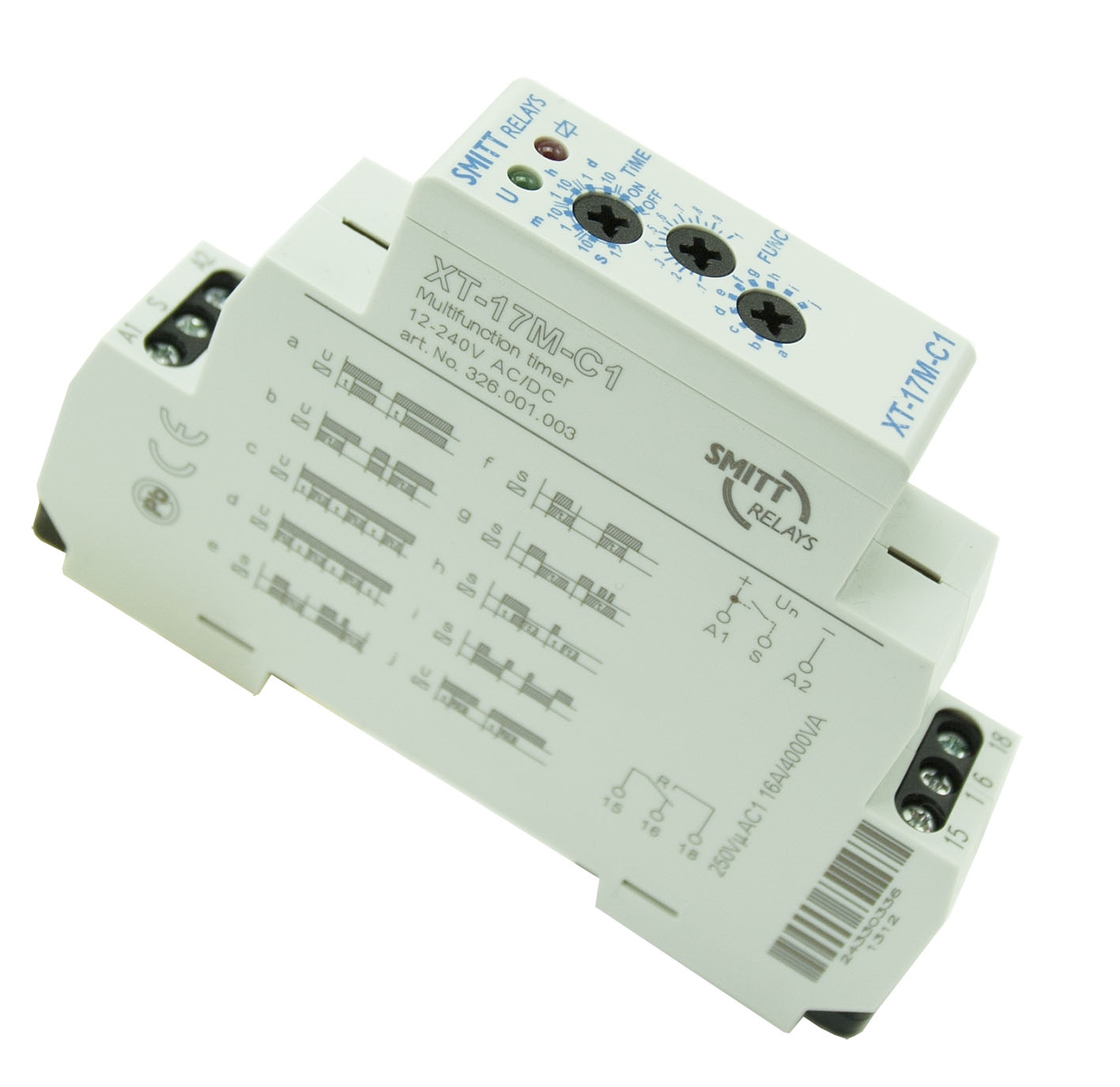

XT-17M-C1, multifunction

Multifunction time relay equipped with 10 functions, adjustable time delay and universal supply voltage. A few functions of the relay can be controlled remotely via the signaling contact (S).

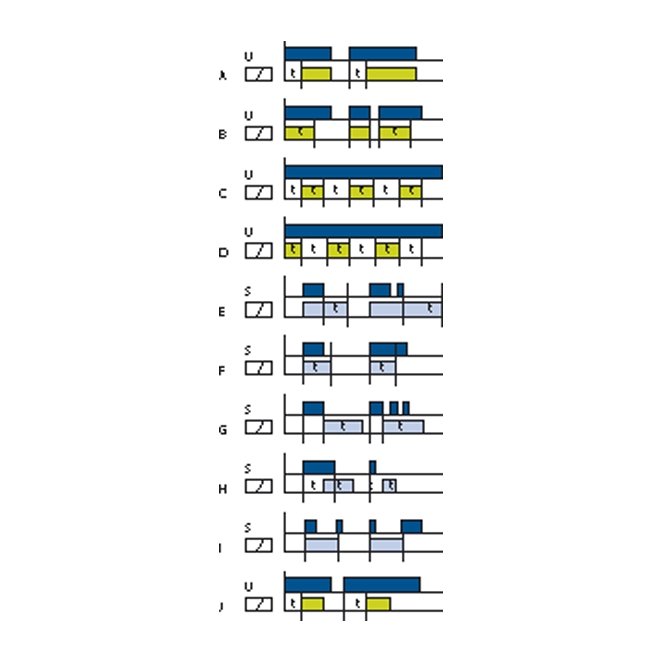

10 functions

  • Delay-on
  • Delay-off
  • Recycler starting on
  • Recycler starting off
  • Delay-on after break of S contact
  • Delay-off after make of S contact
  • Delay-off after make of S contact
  • Delay-on / off
  • Latching
  • Pulse generator

Features

  • Adjustable time delay 0.1 s...10 d
  • Universal supply voltage 12...240 VAC/DC
  • 1 changeover contact 16 A
  • Screw connection
  • LED indication
  • Suitable for 35 mm rail mounting

Ordering code

  • XT-17M-C1 326001003
