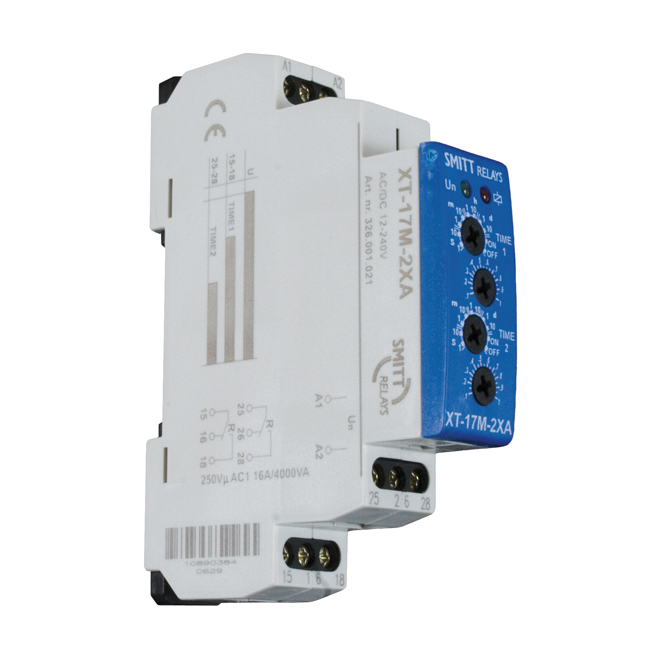

XT-17M-2XA, delay on (2 timed contacts)

XT-17M-2XA delay on (2 timed contacts)

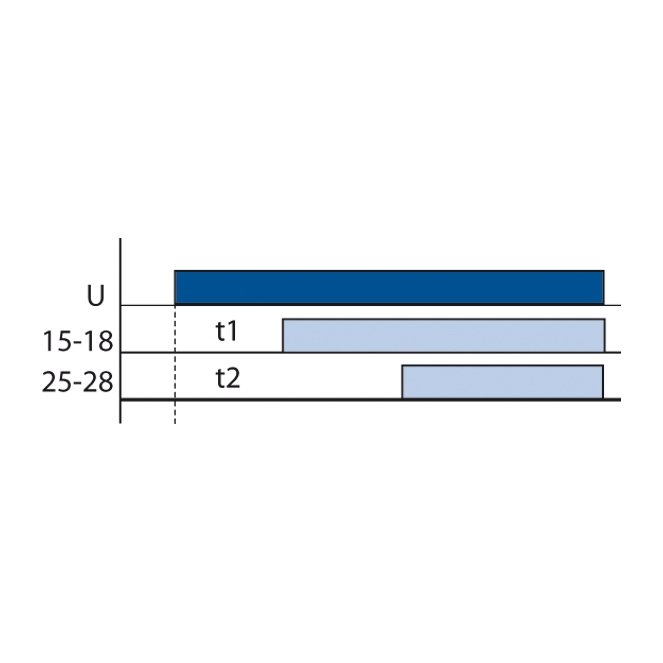

Single function delay-on time relay equipped with 2x 1 changeover contacts. For each contact a separate time delay can be set as delay-on.

• Delay-on
• Adjustable time delay 0.1 s...10 d
• Universal supply voltage 12...240 VAC/DC

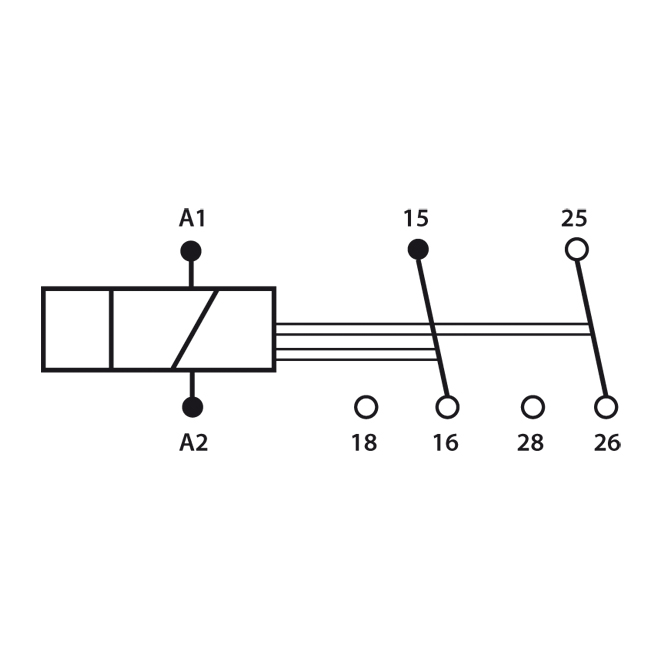

• 2x 1 changeover contact 16 A
• Screw connection
• LED indication
• Suitable for 35 mm rail mounting

Ordering code

• XT-17M-2XA 326001021
