Measuring & monitoring relays (Obsolete)

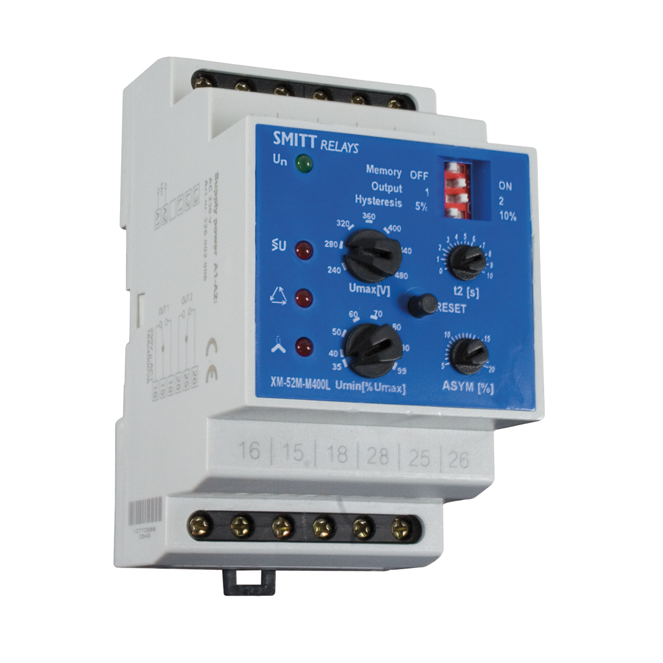

XM-52M-M400L, 3 phase, monitoring relay

326002006
Summary

3 phase network monitoring relay, 2CO, 16A (AC1)

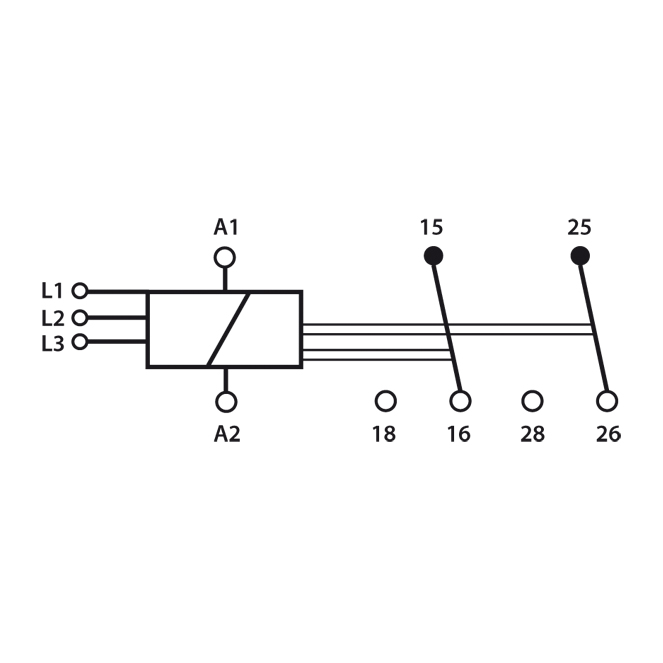

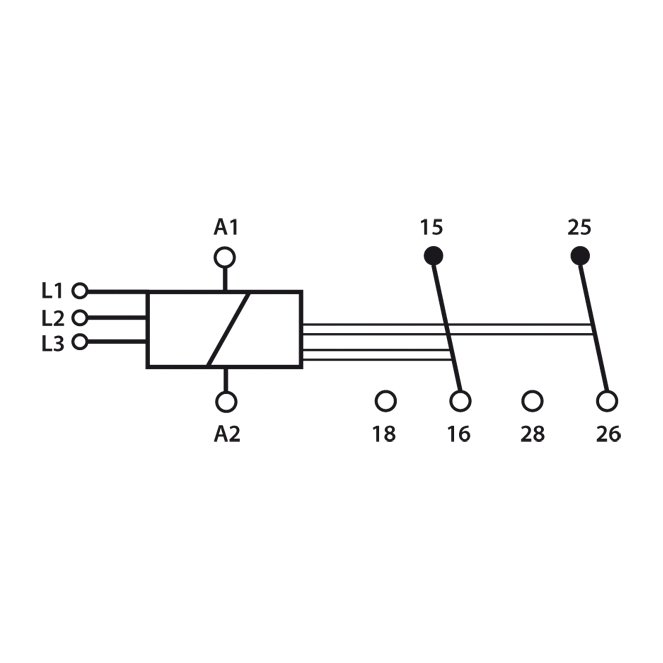

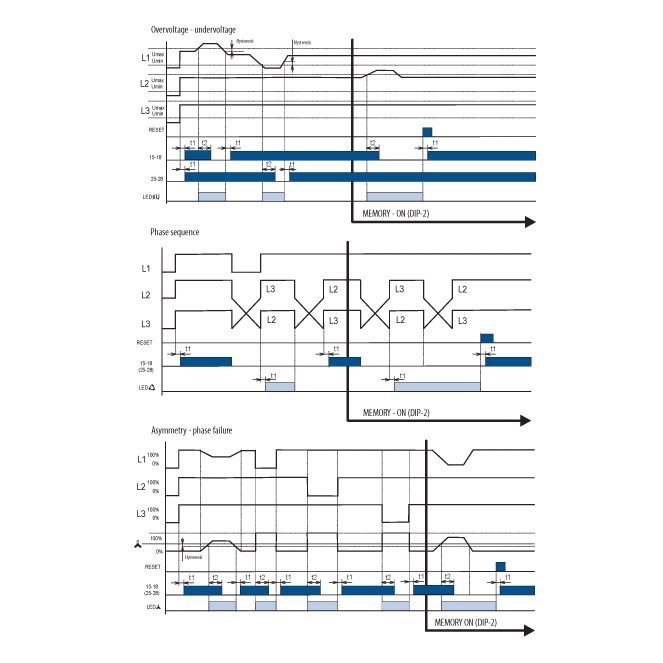

Monitoring voltage level, phase failure, sequence and assymentry, in 3 phase network (no neutral).
  • Modular housing
  • 2CO contacts
  • Galvanically seperated supply voltage
  • Two output relays, selectable function 2nd relay
  • 35 mm DIN rail mounting
  • LED indicator
  • Fixed (t1) and adjustable (t2) delay
  • 3 modules, DIN rail mounting
Specifications

Contact specifications

Contact material
AgNi

Number & configuration
2 C/O contacts

Rated continuous current (AC1, IEC 60947)
16 A

Max. inrush current
30 A / < 3 s

Max. switching voltage
24 VDC / 250 VAC

Breaking capacity
4000 VA/AC1 / 384 W/DCCoil specifications

Nominal voltage (Un AC)
A1 - A2 230 VAC

Power consumption
4,5 VA

Operating range
0,8...1,1 UnTechnical data

Mechanical life cycles
30x106

Setting accurancy (mechnical)
5%

Umax measuring range
280 - 480 V

Umax measuring range
30 - 99% of Umax

Hysterese measuring range
5 or 10% of set value

Assymmetry
5...20%

T1 time delay
Fixed max 200 ms

T2 time delay
0-10 s

Ambient temperature
-20...+55 176;C

Weight
234 gram

Dimensions
90 x 52 x 65 mm

Protection category
IP 40

Connection
Screw 2,5 mm2
