Documentation
Datasheet - XM-17M-M400LN V2.0.pdf


Measuring & monitoring relays (Obsolete)

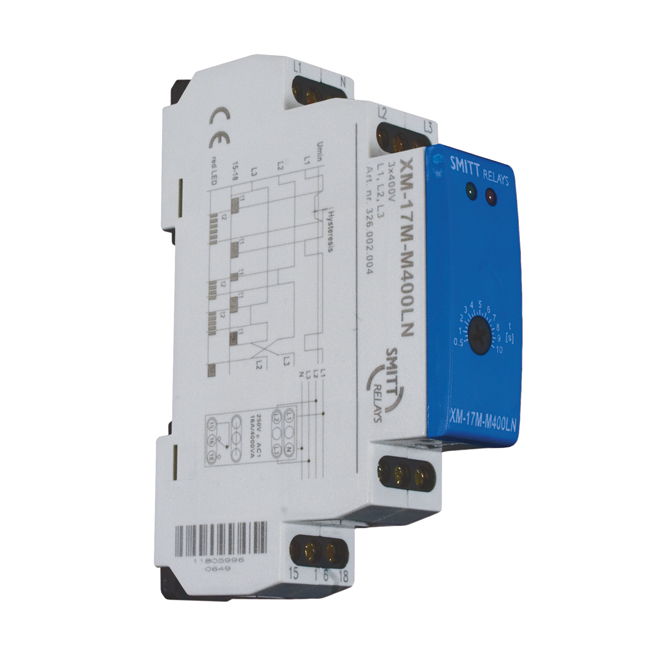

XM-17M-M400LN, 3 phase + N, AC monitoring relay

326002004
Summary

3 phase network monitoring relay, 1CO, 8A (AC1)

Monitoring voltage level, phase failure and sequence, in 3 phase networks. Nominal voltage 3x230/400VAC (+ neutral)
  • Modular housing
  • 1CO contact
  • Monitored voltage serves also as supply voltage
  • Adjustable time delay
  • 35 mm DIN rail mounting
  • LED indicator (red / green), 3 states
  • Supply from monitored voltage
  • Possibility to set upper and lowel level of monitoring voltage
  • 1 module, DIN rail mounting
Specifications


Coil specifications

Product information request

Railway rolling stock
Railway signalling
Industry
Energy
Instruments
Maritime
Yes
Yes
