Measuring & monitoring relays (Obsolete)

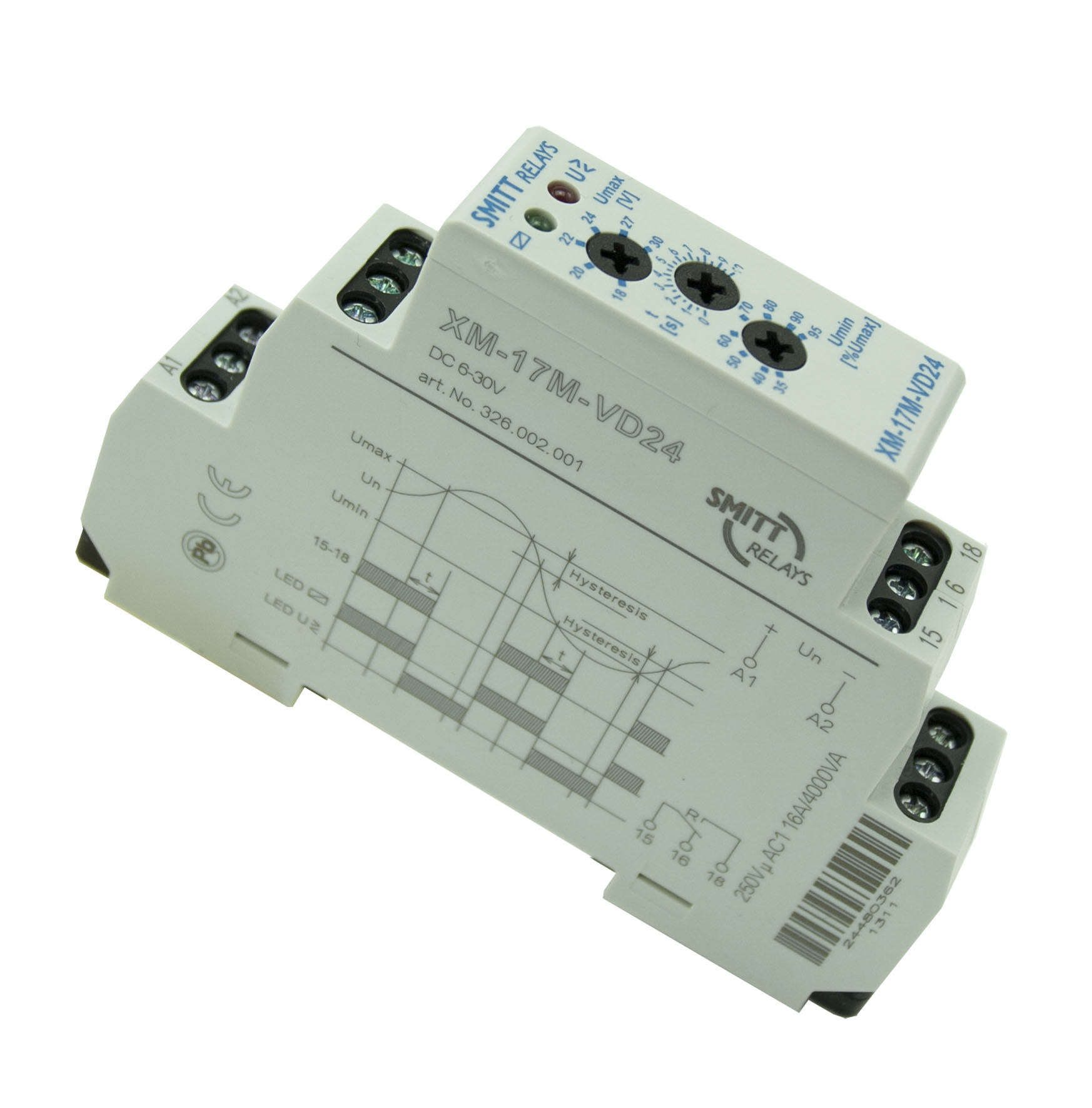

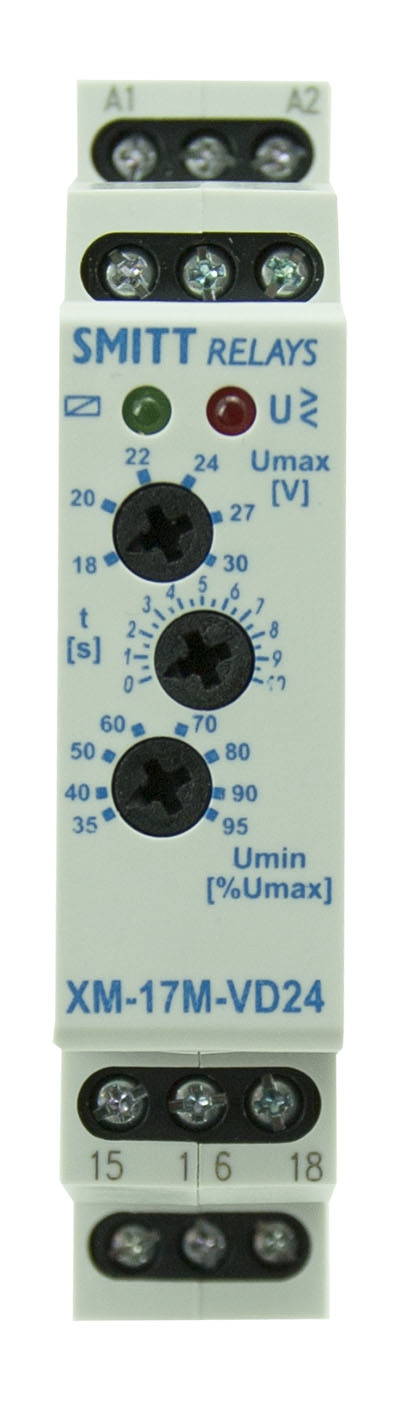

XM-17M-VD24, 1 phase DC voltage monitoring relay

326002001
Summary

Electronic voltage monitoring, 1CO, 16A (AC1)

Modular voltage monitoring relay for general purpose, industrial applications.
  • Modular housing

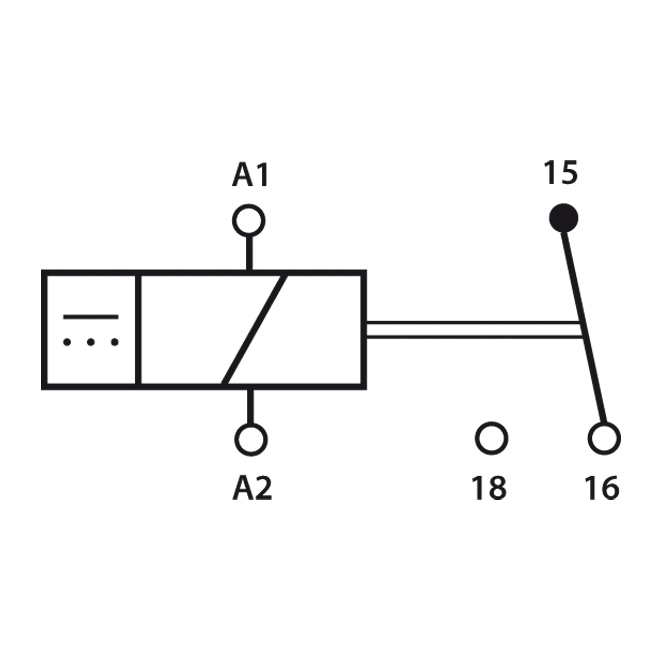

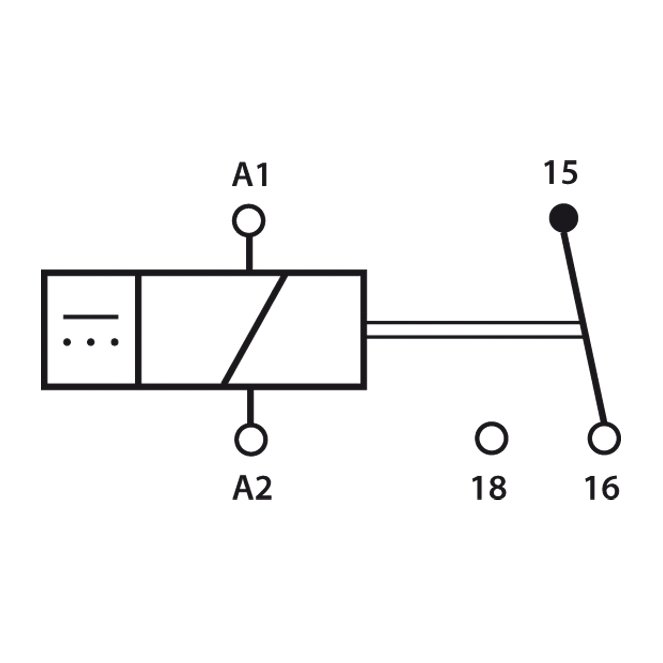

  • 1CO contacts
  • Monitored voltage serves also as supply voltage
  • Range: 6...30VDC
  • Adjustable time delay
  • 35 mm DIN rail mounting
  • LED indicator (red / green), 3 states

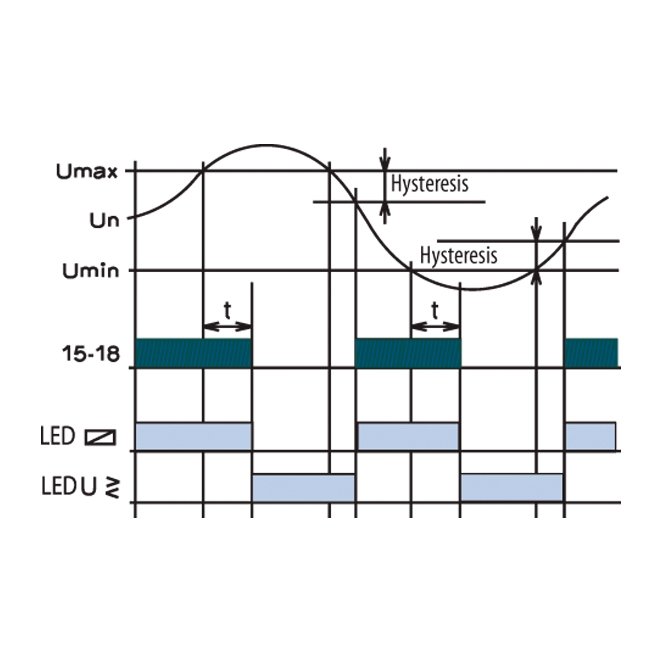

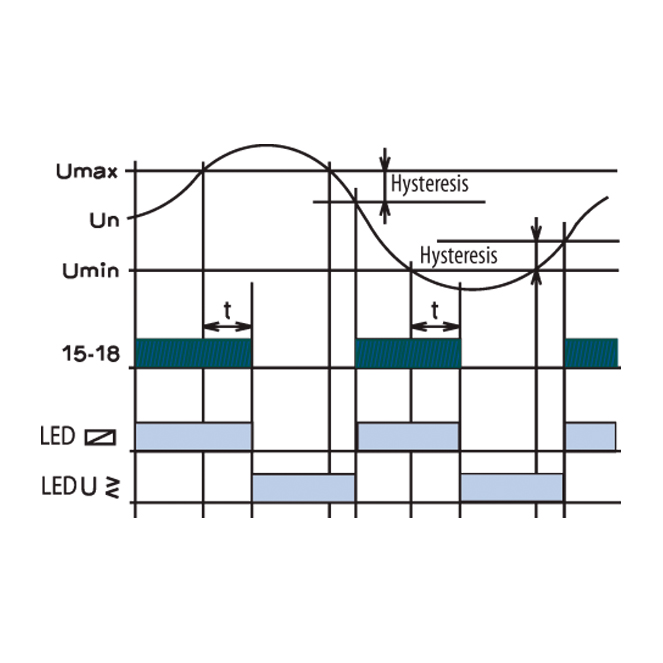

  • Umax and Umin can be monitored independently
  • Voltage Umin adjusted as % of Umax
  • 1 module, DIN rail mounting
