Obsolete Industrial Relays

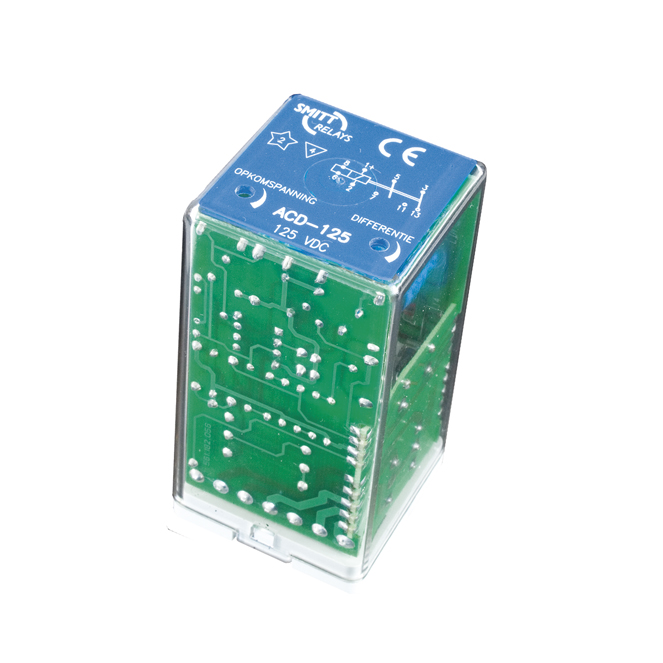

ACD series, DC voltage monitoring relays

Obsolete

Summary

This product is no longer available. The replacement relay is the MTDV4.
Click here to go to the product page of the MTDV4.

DC voltage monitoring applications, for example battery packs.

Smitt style pinning

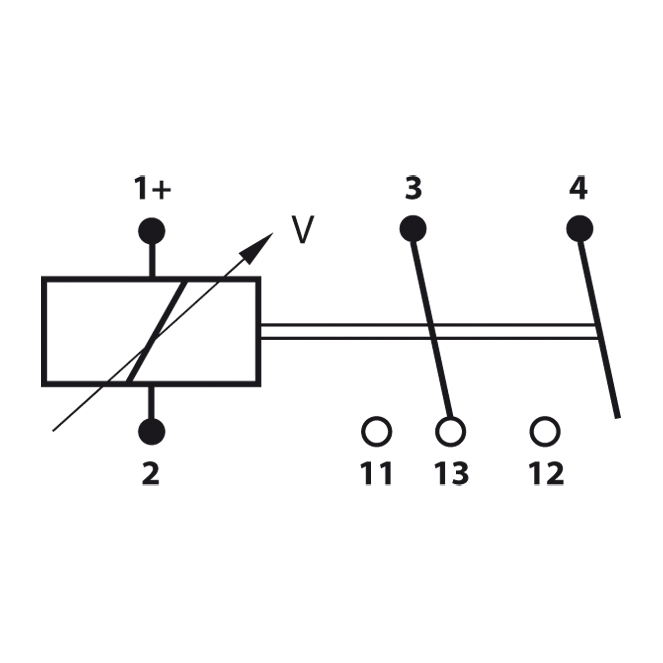

1CO + 1NO contact
DC coil
Flash barrier
Cadmium free contacts
Battery voltage, 2 levels

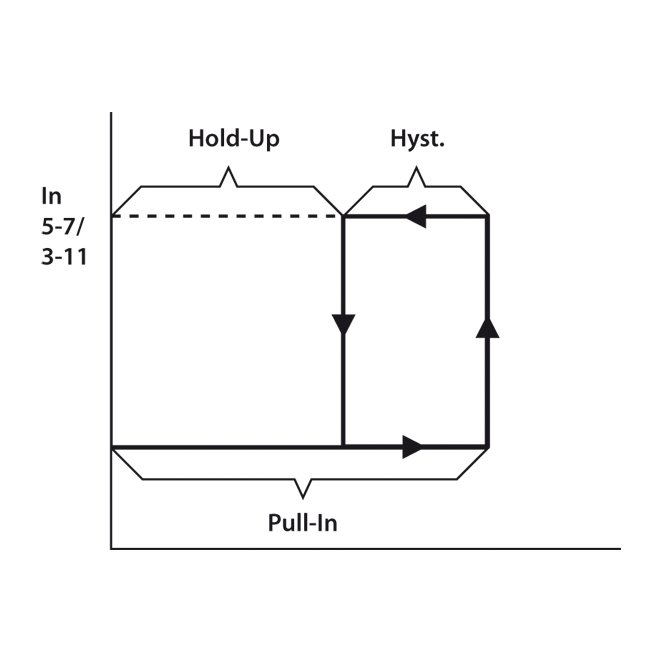

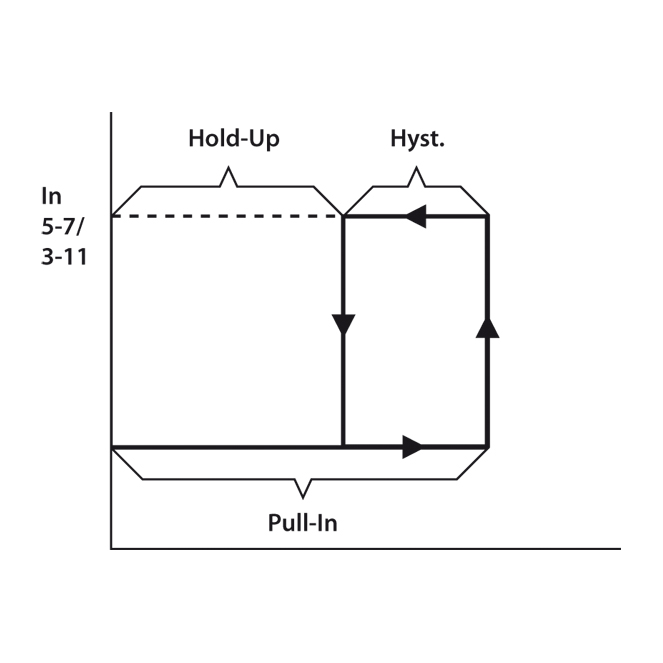

Adjustable pull-in & hysteresis
Triptime, 20 ms (if 6&8 connected 0,25 s.)
Integrated 'snap-lock' retaining clip

See the datasheet in the download section for all specification and options.

See the accessories section for all suitable relay sockets and accessories.
