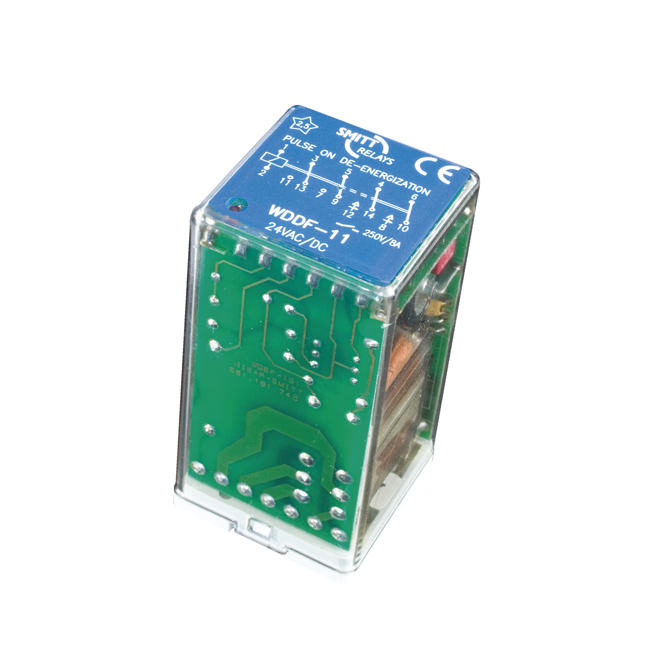

WDDF series, pulse relay (one shot-off relay)

Name: WDDF series, pulse relay (one shot-off relay)
Brand: Own brand
Availability: InStock

This relay is obsolete from January 1, 2023

Summary

WDDF, pulse relay, 2 C/O and 2 N/C, 8A

Pulse relay (one shot relay) for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads. Generates a 0,5s. (fixed) pulse on de-activation.

Plug-in relay
Smitt-style pining

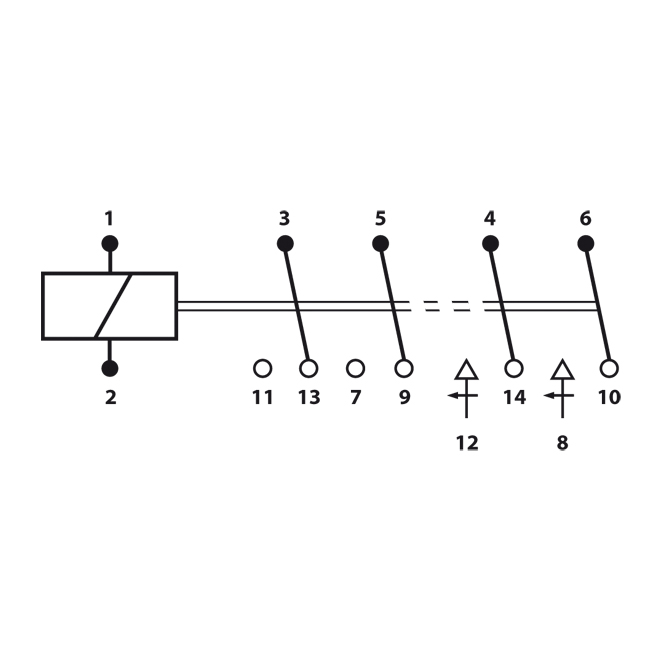

2 C/O instant + 2 N/C time contacts
Pulse 0,5s. (fixed) on de-activation
DC and AC coil
Flash barriers
LED indicator
Cadmium free contacts
Integrated 'snap-lock' retaining clip
