Instantaneous plug-in Auxiliary power relays

DGG series, low operate voltage relays

Summary

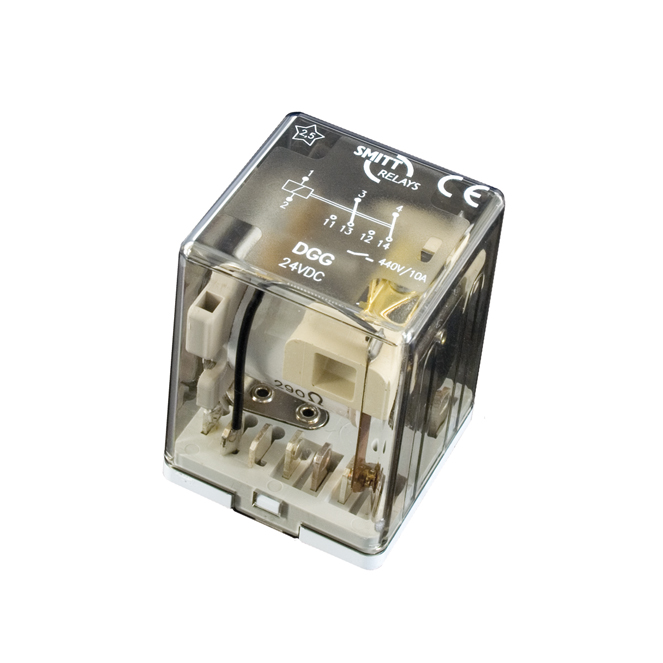

DGG relays, 2 C/O, pull-in voltage 0,4 x Unom.

Heavy duty relays wth extremely sensitive coil (pull-in 0,4 x Unom) for demanding applications.
  • Plug in relay
  • Smitt-style pinning

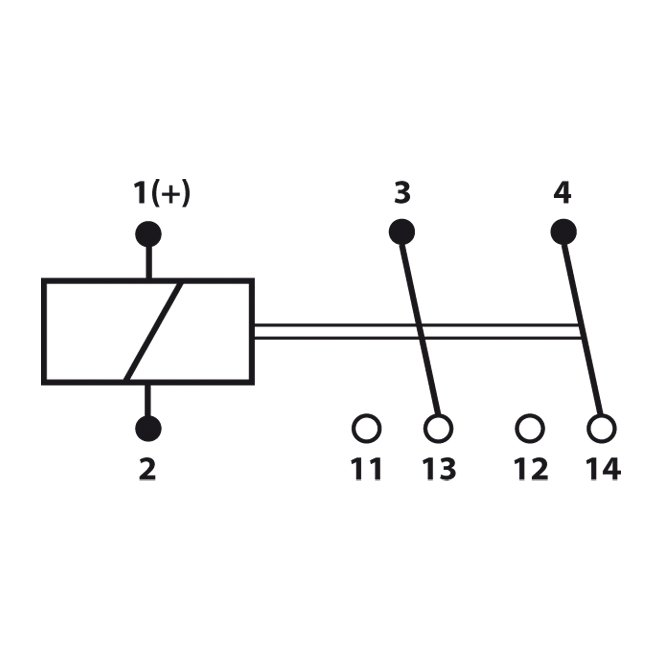

  • 2 C/O contacts
  • Rated load 1A /110V DC1 , 10A/230V AC1
  • Coil voltages 12...220VDC
  • DC coil, DC with standard back EMF diode
  • LED indicator
  • Integrated 'snap-lock' retaining clip
  • Extreme sensitive coil (pull-in voltage 0,4 x Unom)

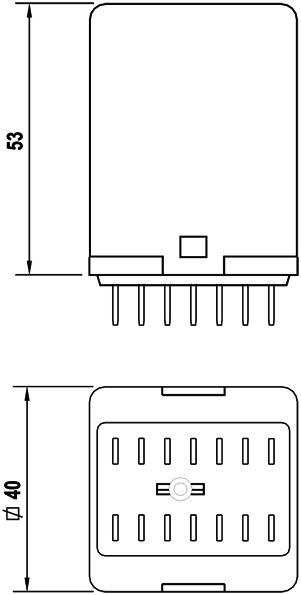

  • Dimensions 40 x 40 x 53 mm
