High speed plug-in tripping relays

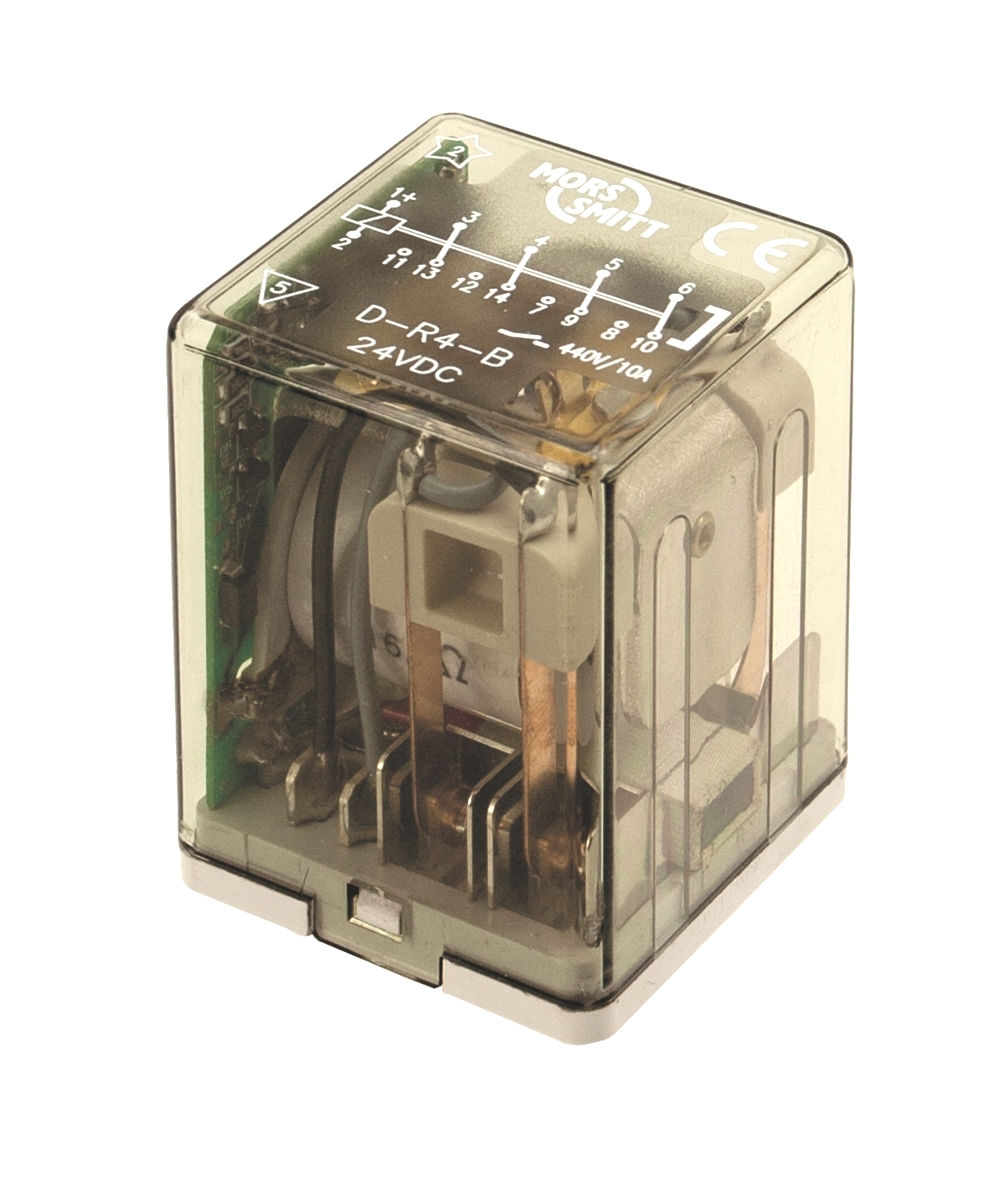

D-BR4, fast switching & high breaking capacity relays
Summary
D-BR4 relays, high DC breaking capacity, fast switching relays
Heavy-duty, fast relay for demanding applications. Fast switching/pull-in, integrated magnetic arc blow-out function for higher DC breaking capacity.
-
Plug in relay
-
Smitt-style pinning
-
4 C/O contacts
-
Rated load 7A /110V DC1
-
Coil voltages 6...220VDC
-
DC coil
-
Integrated 'snap-lock' retaining clip
-
Magnetic arc blow-out (option B standard)
-
Fast switching
-
Back EMF diode
-
Dimensions 40 x 40 x 53 mm
