Instantaneous plug-in Auxiliary power relays

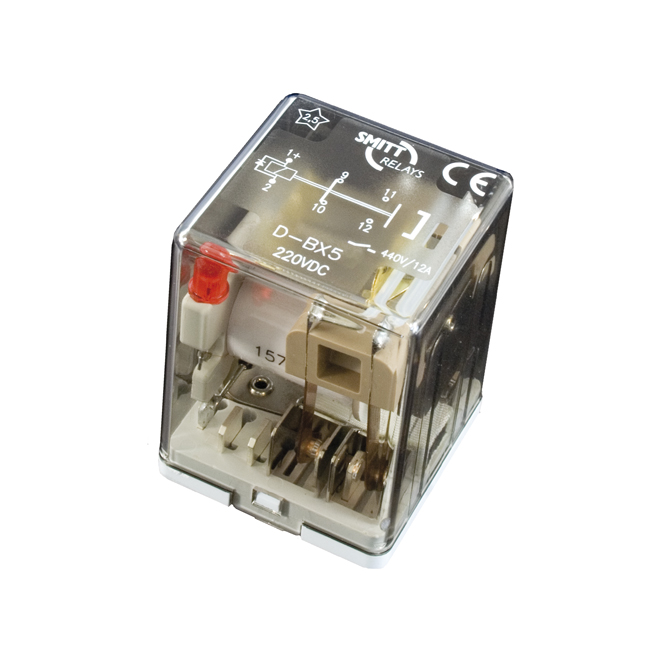

D-BX5 series, high DC breaking capacity (10A) relays
Summary

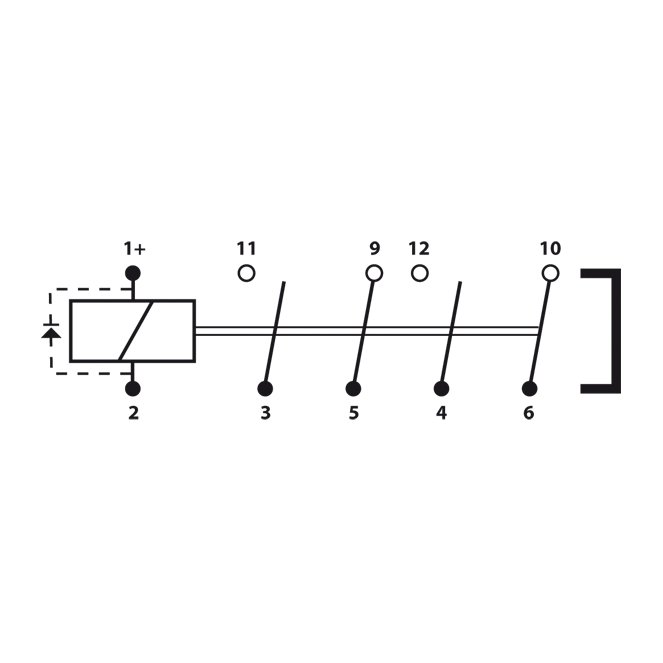

D-BX5 relays, 2NO + 2NC, up to 10A/110V DC1
Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and contact gap 2mm for higher DC breaking capacity.
-
Plug in relay
-
Smitt-style pinning
-
2NO + 2NC contacts
-
Rated load 10A /110V DC1 , 10A/230V AC1
-
Coil voltages 12...220VDC, 12...380VAC
-
AC&DC coil, DC with standard back EMF diode
-
LED indicator
-
Integrated 'snap-lock' retaining clip
-
Magnetic arc blow-out (option B)
-
Contact gap 2mm (option X5)
-

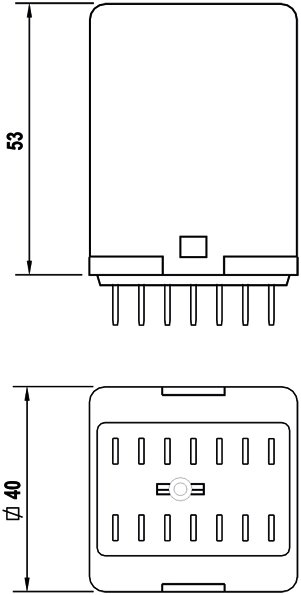

Dimensions 40 x 40 x 53 mm
