Obsolete Test & Measurement Products

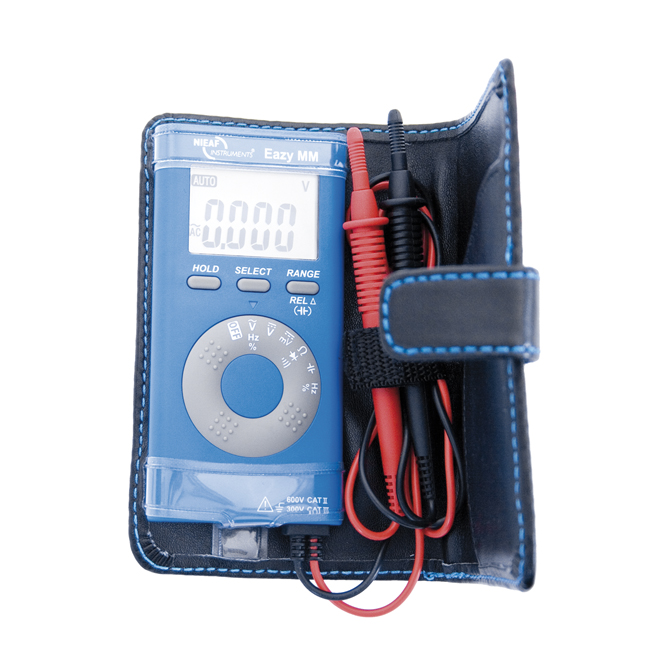

Eazy MM, compact multimeter
626005039 (Obsolete)Summary
This product is Obsolete
Replecement prduct is the NI 64
Multimeter
Top-class pocket-sized digital multimeter, ideal for use anywhere due to its size.
- AC/DC voltage
- Resistance
- Diode test
- Continuity
- Capacity
- Frequency
Characteristics
- Data hold
- Auto range
- 1 m drop strength
- Large LCD screen
- Continuity / Diode Test
Including
- Protective bag
- Battery
- Manual
Specifications
| Functions | Max. range | Accuracy |
| Voltage | 600 VAC 600 VDC |
± 0.9 % + 5d ± 0.7 % + 2d |
| Frequency | 5 mHz | ± 1.2 % + 2d |
| Resistance | 40 MΩ | ± 1.5 % + 2d |
| Capacitance | 100 μF | ± 3.0 % + 5d |
| General | ||
| Screen resolution | 5000d | |
| Fall strength | 1 m | |
| Overvoltage category | CAT II 600 V / CAT III 300 V | |
| Standard | EN 61010-1 | |
| Power supply | 2x 1.5 V LR44 batteries | |
| Dimensions | 112 x 56 x 12 mm | |
| Weight | ± 115 g | |
| Including | Test leads, storage folder, manual, battery | |
