A Timer Relay is a combination of an electromechanical output relay and a control circuit. The contacts will open or close before or after a pre-selected, timed interval.
Time delay relays are initiated or triggered by one of two methods:
- Application of input voltage/auxiliary supply will either initiate the unit or make it ready to initiate when a trigger signal is applied.
- Applying a trigger signal is used to initiate the unit after input voltage has been applied. This trigger signal can either be a control switch (dry contact switch) or a power trigger (voltage).
1019 relay - Solid state flashing
- Solid state outputs
- One or two independant output channels
- Flashing frequency varies according to series
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+70 °C operating temperature
See more details
.jpg)
FDG-U200 relay - Flashing, 2 solid state contacts
- Flashing relay (symmetrical)
- Compact plug-in design
- Solid state contacts 1 N/O and 1 N/C in counterphase
- Fixed pulse and interval time
- Flat, square and silver plated relay pins for excellent socket connection
- Wide range sockets
- Integrated snap lock
- Transparent cover
- Optional positive mechanical keying relay to socket
See more details
TPBAU 400 relay - One-shot time delay
- Delay-on pull-in and on drop-out relay
- Delau triggered by the up front of the command input
- Delay range from 0.25 s up to 63 min
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 double make / double break C/O contacts (form Z), 8 A
- Optional weld no transfer contacts
- Contact life (mechanical) of 100 million cycles
- -40 °C...+85 °C operating temperature
See more details
.jpg)
TPBAUN 400 relay - One-shot time delay with negati…
- Delay on pull-in and on drop-out relay
- Delay triggered by the negative edge of the command input
- Delay range from 0.25 s up to 63 min
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 double make / double break C/O contacts (form Z), 8 A
- Optional weld no transfer contacts
- Contact life (mechanical) of 100 million cycles
- -40 °C...+80 °C operating temperature
See more details
TPBBU 400 relay - One-shot time
- Delay-on plug-in or drop-out relay
- Delay triggered by the up front of the command input
- Delay range from 0.25 s up to 63.75 min
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 double make / double break C/O contacts (form Z), 12 A
- In standard with weld no transfer contacts
- -40 °C...85 °C operating temperature
See more details
T2PBAU 400 relay - Two-shot time delay
- Delay-on pull-in and on drop-out relay
- Shots triggered by the up and down front of the command input
- Delay range from 0.25 s up to 63.75 min
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 double make / double break C/O contacts (form Z), 8 A
- Optional weld no transfer contacts
- Contact life (mechanical) of 100 million cycles
- -40 °C...+85 °C operating temperature
See more details
.PNG)
TDDB-U200 relay - Timer, delay-on, 4 pole
- Time delay relay and instantaneous relay
- Compact plug-in design
- 2 C/O contacts with delay on pull-in and 2 C/O instantaneous contacts
- Delay time adjustable with a lockable knob
- Also available with fixed time delay (no knob)
- Two LEDs for status indication
- Flat, square and silver plated relay pins for excellent socket connection
- Wide range sockets
- Integrated snap lock
- Transparent cover
- Optional positive mechanical keying relay to socket
See more details
TDDB-U300 relay - Timer, delay-on, AC input, delay…
- Time delay relay and instantaneous relay
- Compact plug-in design
- AC input
- 2 C/O contacts with delay on pull-in and 2 C/O instantaneous contacts
- Delay time adjustable by lockable knob
- Also available with fixed time delay
- Flat, square and silver plated relay pins for excellent socket connection
- Wide range sockets
- Integrated snap lock
- Transparent cover
- Optional positive mechanical keying relay to socket
- Flexibility by many options
See more details
TTBCA 200 relay - Delay-on pull-in, instantaneous
- Delay-on pull- in and instantaneous functions
- Delay range from 0.5 s up to 4 s (up to 60 s on request)
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 2 simple break C/O contacts (form Z),
- 6 A with 1 instantaneous C/O and 1 C/O delayed contacts on pull-in
- Weld no transfer contacts
- Contact life (mechanical) of 10 million cycles
See more details
.jpg)

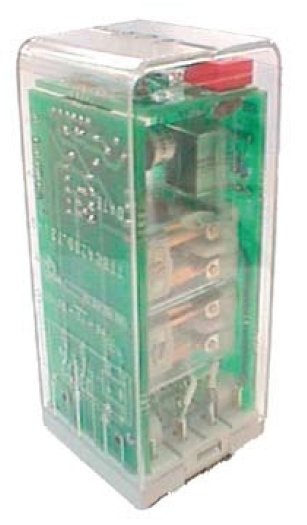

TTBCA 400 relay - Delay-on pull-in, instantaneous
- Delay-on pull-in and instataneous functions
- Delay range from 0.5 s up to 4 s (other on request up to 60 s)
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 simple break CO contacts (form Z),
- 6 A with 2 instantaneous C/O and
- 2 C/O delayed contacts on pull-in
- Weld no transfer contacts
- Contact life (mechanical) of 10 million cycles
See more details
.jpg)
TTBCR 200 relay - Delay on drop-out, instantaneous
- Delay on drop-out and instantaneous functions
- Delay range from 0.5 s up to 4 s (other up to 60 s on request)
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 2 simple break C/O contacts (form Z),
- 6 A with 1 instantaneous C/O and
- 1 delayed contacts on drop-out
- Weld no transfer contacts
- Contact life (mechanical) of 10 million cycles
- -40 °C...+85 °C operating temperature
See more details
TTBCR 400 relay - Delay on drop out instantaneous
- Delay on drop-out and instantaneous functions
- Delay range from 0.5 s up to 4 s (other on request up to 60 s)
- Time delay fully programmable by dip switch
- Status LED indicator
- Plug-in design with secure locking feature for maximum ease of maintenance
- 4 simple break C/O contacts (form Z),
- 6 A with 2 instantaneous C/O and 2 delayed contacts on drop-out
- Weld no transfer contacts
- Contact life (mechanical) of 10 million cycles
- -40 °C...+85 °C operating temperature
See more details
WDDE-U200 relay - Instantaneous 2 pole and one-sho…
- One-shot time delay and instantaneous relay
- Compact plug-in design
- 2 C/O one-shot contacts and 2 C/O instantaneous contacts
- Pulse time adjustable with a lockable knob
- Pulse times between 0.1 s...60 min
- Also available with fixed pulse time (no knob)
- Two LEDs for status indication
- Flat, square and silver plated relay pins for excellent socket connection
- Integrated snap lock
- Optional positive mechanical keying relay to socket
See more details
.PNG)
WDDE-U300 relay - Instantaneous 2 pole and one-sho…
- One-shot time delay and instantaneous relay
- Compact plug-in design
- 2 C/O one-shot contacts and 2 C/O instantaneous contacts
- Pulse time adjustable with a lockable knob
- Pulse times between 0.1 s...60 min
- Also available with fixed pulse time (no knob)
- Two LEDs for status indication
- Flat, square and silver plated relay pins for excellent socket connection
- Integrated snap lock
- Optional positive mechanical keying relay to socket
See more details
TA3 - Electronic timer module, delay on drop-out (…
- Delay on drop-out timing module wired in parallel
- Duration range from 0.125 s to 90 min (setting in factory)
- Longer times possible upon request
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
TAC relay - Electronic timer, windshield wiper con…
- Train windshield wiper monitoring
- Wiping sequence adjustable with a potentiometer from one every 3 seconds to one every 30 seconds
- Compact plug-in design
- -40 °C...+85 °C operating temperature
See more details
.jpg)

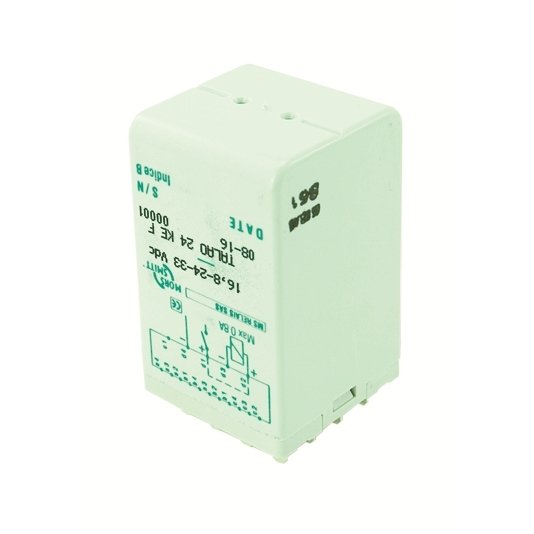

TALAO Electronic timer module, delay on pull-in
- Delay on pull-in timing module
- Extended time delay range with additive time combination
- Delay range from 0.25 s up to 63.75 min
- Time delay programmable by external connections
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
.jpg)
TALOR electronic timer module
- Delay on drop-out timing module
- Extended time delay range with additive time combination
- Delay range from 0.25 s up to 63.75 min
- Time delay programmable by external connections
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
TB AO Electronic timer module, delay-on pull-in
- Delay-on pull-in timing module
- Short time delay range
- Delay range 0.25 s...40 s
- Time delay programmable by external connections
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
.jpg)
TB OR Electronic timer module, delay-on drop-out
- Delay-on drop-out timing module
- Short time delay range
- Delay range from 0.25 s up to 40 s
- Time delay programmable by external connections
- Plug-in design with secure locking feature for maximum ease of maintenance
See more details
.jpg)

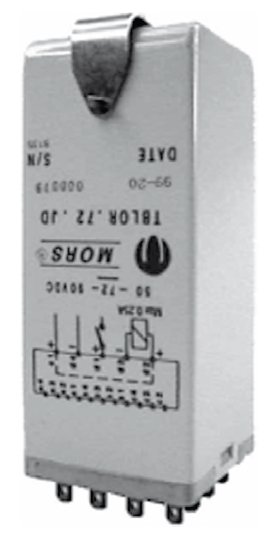

TBL AO Electronic timer module, delay-on pull-in
- Delay-on pull-in timing module
- Extended time delay range
- Delay range 0.25 s...63.75 min
- Time delay programmable by external connections with additive time combination
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
TBL OR Electronic timer module, delay-on drop-out
- Delay-on drop-out timing module
- Extended time delay range
- Delay range from 0.25 s up to 63.75 min
- Time delay programmable by external connections with additive time combination
- Plug-in design with secure locking feature for maximum ease of maintenance
- -40 °C...+85 °C operating temperature
See more details
.jpg)
TCAL Electronic timer module, flasher
- Flashing module (symmetrical)
- Extended pulse duration range with additive time combination
- Pulse duration from 0.25 s ...63.75 min
- Time delay programmable by external connections
- Plug-in design with secure locking feature for maximum ease of maintenance
See more details
