The 6R MATRIX range was developed to provide design engineers with a modular system of auxiliary relays to meet specific system configurations. The versions described in the following cross reference table have pre-defined functional & contact configurations to offer the following advantages:
  • Simple to specify & order
  • Lower cost due to model rationalization
  • Direct cross reference to other manufacturers models

  • Standardized wiring details



Products

Filter
6R Series: Trip, Auxiliary and Supervision

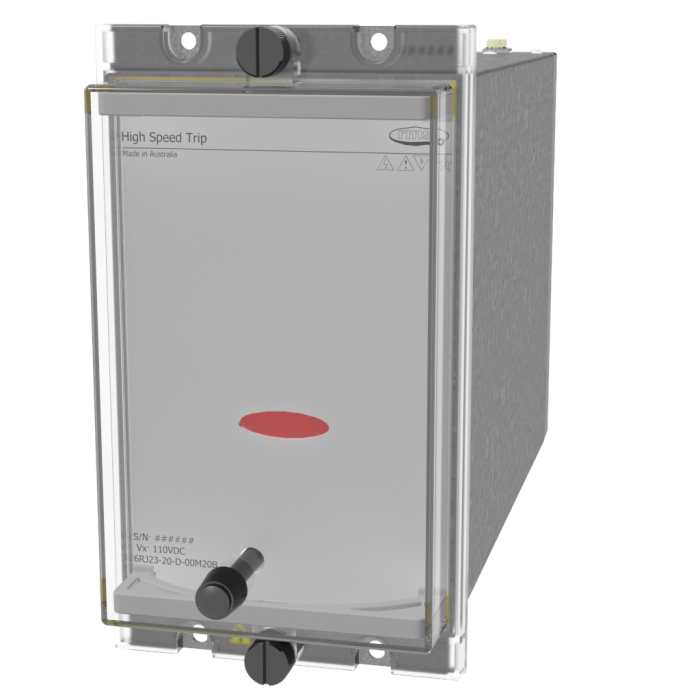

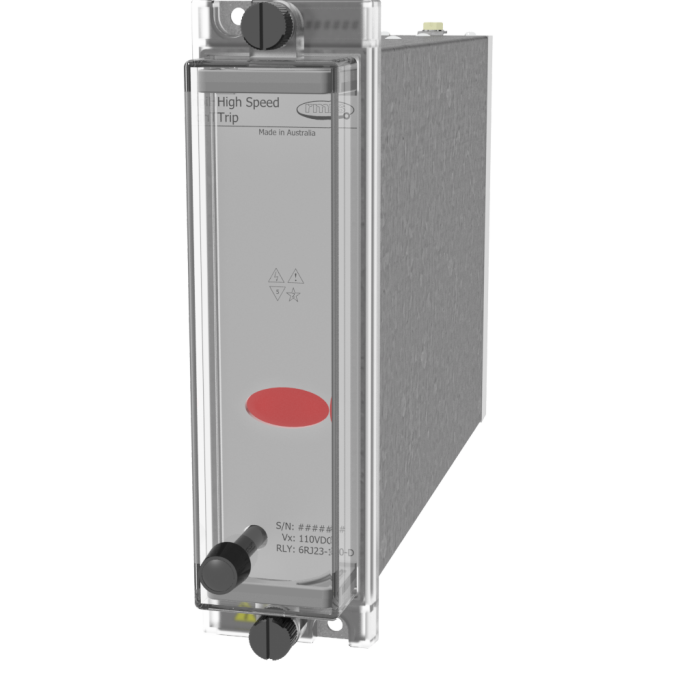

6RJ Series High Speed Tripping Relays

  • Alternative to MVAJ relays
  • High Speed Operation
  • High Burden and Low Burden Models
  • 5, 10 and 20 contact versions
  • Lockout Function
  • Self Reset, Hand Reset (Lockout) and Electrical Reset (Lockout) contact versions
  • High Visibility Hand Reset Flag
  • Size 2 & Size 4 withdrawable cases
  • Made in Australia
Read more
6R Series: Trip, Auxiliary and Supervision

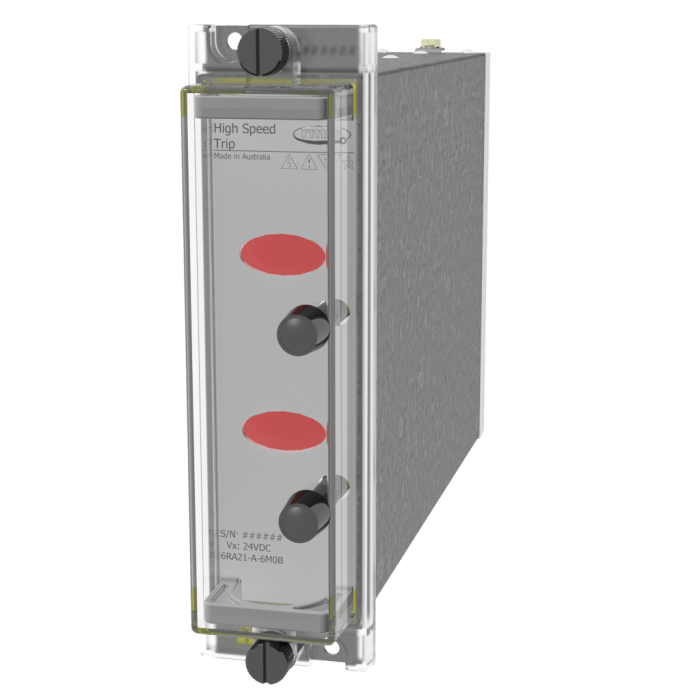

6RA Series Auxiliary Flag Relays

  • Alternative to MVAA Relays
  • Self Reset, Hand Reset and Electrical reset contact versions
  • 6 Contacts – (2 x 6 contacts for 2 element version)
  • Low Burden
  • High Visibility Hand Reset Flag
  • Size 2 withdrawable case
  • Made in Australia
Read more
6R Series: Trip, Auxiliary and Supervision

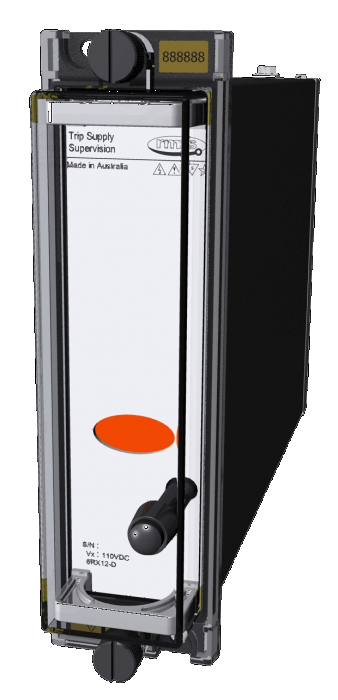

6RX Series Trip Circuit Supervision Relays

  • Alternative to MVAX relays
  • Trip Relay, Trip Supply and Trip Circuit Supervision versions
  • 2 x C/O contacts
  • Drop Off Delay for stability
  • High Visibility reverse acting Hand Reset Flag
  • Size 2 withdrawable case
  • Made in Australia
Read more
